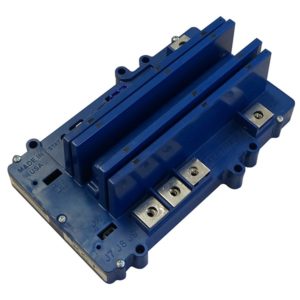

Golf Cart Series Controller Alltrax SR Series 500A
This 500 Amp Alltrax Golf Cart Series Controller is designed specifically to work with all 36v or 48v Series motors. This is a direct OEM replacement for your Golf Cart Speed Controller. Series Motor Applications ONLY! Not for use in Regen Carts. AllTrax can power your creation with multiple golf cart speed controller options for many applications and voltage requirements. Performance without compromise. Made In the USA.
Features and Benefits:
- 12 to 48 volt
- 500 amp
- User personality switch input
- Flexible USB programming
- Integrated heat sink mounts on any suitable surface
- Solenoid Control for Main DC Control
- Standard 4-hole OR 2-hole mounting
- Optional Universal-Mount Adapter for No Drill Install
- Auto-throttle calibration for smooth operation
Note – All ratings are at 25 degrees celsius, with nominal rating voltage at 50% PWM. Actual current ratings are /- 5% listed amperage.
Specifications:
- Type: Series Motor Controller
- Operating Frequency: 18kHz
- Controller Voltage, KSI & Reverse:
- Controller Operating Temp: -20°C to 75°C, shutdown @ 85°C
- Environmental Operating Temp: -20°C to 50°C
- Standby Current (Power up): <1W nom, <8W Fan on
- Stand By Power : <20mA
- Relay Drive Output Current: 5A peak, 1A Continuous. (Solenoid) – Upgrade Required – See Options Now
- Throttles Supported: 0-5k, 5k-0, E-Z-GO ITS, Club Cart 5k-0 3 (See Below)
- Terminal Torque: Torque to 60-80 in.lb (5-7 ft/lb, 6.77-9.4Nm)
Throttle Inputs Options:
- ITS
- Resistive 0-5K ohm ( /-10%) 2-wire and 3-Wire
- Resistive 5K-0 ohm ( /-10%) Club Car
- USB Throttle
- Wire – MCOR – 0-5 Volt, 6 -10.5 Volt (Taylor Dunn)
Adjustments via Alltrax Tool-Kit Software: Download – Get It Now!
- Throttle acceleration / deceleration rate and map profile
- Armature current limit
- Under / Over voltage shutdown
- Half Speed Reverse
- High Pedal Disable
Pete says… ” Disconnect batteries prior to installation.” Follow this link to AllTrax Help Section and Installation Instructions “
Should you have any questions or not sure this Golf Cart Speed Controller will work with your application drop us a line or give us a call. Pete’s Team is always standing by to help you! Please contact us thru sales@PetesGolfCarts.com should you have any issue with any Golf Cart or Golf Cart Parts for any reason.
