Description

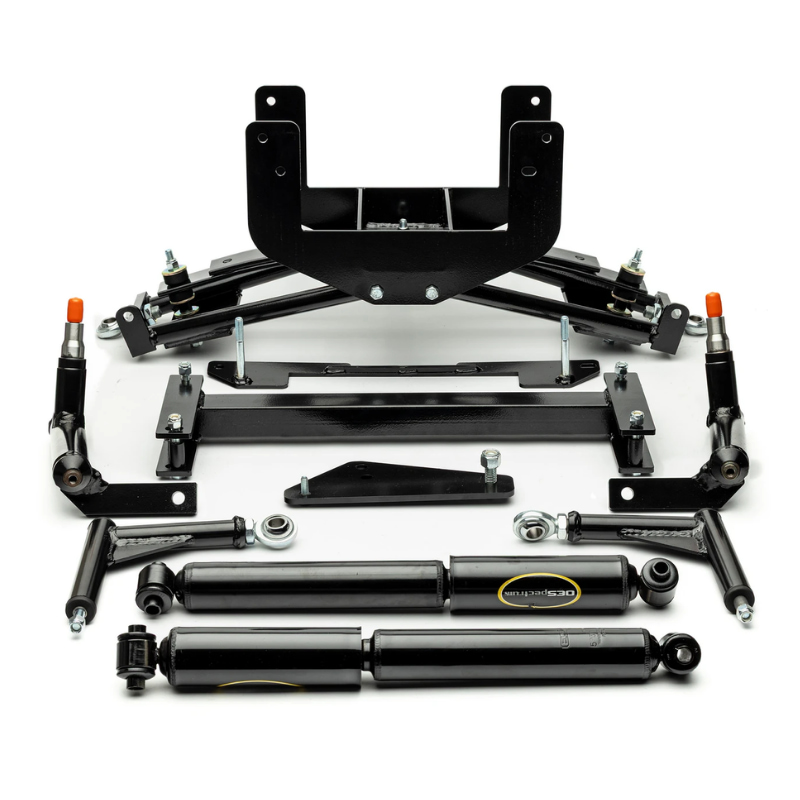

6″ AllSports A-Arm Lift Kit for Yamaha G29/Drive
Give your 2007-2016 Yamaha G29/Drive a serious suspension upgrade with the AllSports 6″ A-Arm Lift Kit.
Designed for customers who want significantly more ground clearance and a more aggressive lifted stance, this kit raises the cart a full 6 inches while improving front-end suspension geometry and wheel-and-tire flexibility.
The A-arm design is built for durability and works well for carts used for neighborhood driving, recreational use, utility work, campgrounds, and light trail applications.
Why Choose a 6″ Lift?
A 6″ lift delivers a much more dramatic change than a mild 3″ or 4″ suspension system.
It provides:
- Significantly increased ground clearance
- More room for larger wheels and tires
- A taller, more aggressive stance
- Better clearance over uneven terrain
- Improved capability for recreational use
- More flexibility for custom wheel packages
- Added utility for property and outdoor use
For customers building a more capable Yamaha Drive, 6 inches provides the height and clearance needed for a more substantial setup.
A-Arm Suspension Design
The front suspension uses an A-arm lift design rather than a basic spacer or block-style system.
This provides a more purpose-built approach to increasing ride height while supporting better front-end geometry and adjustability.
Benefits include:
- Improved suspension control
- Better front-end geometry
- Increased wheel and tire clearance
- Stronger lifted stance
- Better suitability for recreational and utility driving
The system is designed to improve both ground clearance and suspension performance.
Adjustable Toe & Camber
One of the key advantages of this AllSports lift is adjustable toe and camber.
Lifting a golf cart changes suspension geometry, so having the ability to properly align the front end is especially important with a 6″ suspension system.
Correct alignment can help improve:
- Tire wear
- Straight-line tracking
- Steering response
- Handling
- Overall drivability
The adjustable design allows the front suspension to be properly dialed in after installation and after adding larger wheels and tires.
Built for Recreational & Utility Use
This 6″ AllSports lift is designed for carts used well beyond traditional golf-course duty.
It is a strong option for:
- Neighborhood carts
- Campgrounds
- Residential properties
- Property maintenance
- Recreational driving
- Light trail use
- Utility applications
- Custom lifted builds
The added suspension height gives the Yamaha Drive more flexibility for both appearance-focused and functional builds.
Improved Ground Clearance
A full 6″ suspension lift creates a noticeable increase in clearance beneath the cart.
That additional height helps when driving over:
- Uneven pavement
- Gravel
- Grass
- Driveway transitions
- Ruts
- Campground roads
- Mild trails
- Small obstacles
Larger tires can further increase usable ground clearance depending on the wheel-and-tire combination selected.
Designed for Larger Wheels & Tires
One of the biggest benefits of a 6″ lift is the additional space it creates for larger aftermarket wheel and tire packages.
Final fitment depends on:
- Wheel diameter
- Wheel width
- Wheel offset
- Tire height
- Tire width
- Tire manufacturer
- Suspension condition
- Passenger load
- Other aftermarket modifications
Important Rocker-Panel Clearance Note
Minor trimming of the rocker panels may be required depending on the tire size selected.
This does not mean trimming is required for every installation. Final clearance depends on the exact wheel-and-tire package.
Always check tire clearance through the full steering range before regular use.
Straightforward Installation
The AllSports 6″ A-Arm Lift Kit is designed for straightforward installation.
The suspension lift itself does not require:
- Cutting
- Welding
Minor body trimming may still be required depending on tire size.
This makes the kit suitable for experienced DIY installers as well as professional golf cart technicians.
Key Benefits
- Fits Yamaha G29/Drive 2007-2016
- Full 6″ lift height
- A-arm suspension design
- Improves ground clearance
- Enhances suspension performance
- Adds wheel and tire clearance
- Adjustable toe
- Adjustable camber
- Supports precise front-end alignment
- Suitable for recreational use
- Suitable for utility applications
- Creates a taller, more aggressive stance
- No cutting required for lift installation
- No welding required
- Minor rocker-panel trimming may be required depending on tire size
- Model-specific Yamaha Drive fitment
Golf Cart Compatibility
Fits
- Yamaha G29
- Yamaha Drive
- 2007-2016 model years
Does Not Fit
This kit is not intended for:
- Yamaha Drive2
- Yamaha G22
- Yamaha G19
- Yamaha G16
- Yamaha G14
- Yamaha G9
- Yamaha G2
- Club Car models
- EZGO models
Separate AllSports lift kits are available for other Yamaha applications.
Recommended Wheel & Tire Setup
A 6″ lift provides significantly more wheel and tire clearance than a stock-height Yamaha Drive.
Final fitment depends on:
- Wheel diameter
- Wheel width
- Wheel offset
- Tire height
- Tire width
- Actual tire dimensions
- Passenger load
- Suspension condition
- Other aftermarket components
Because larger tire packages may require minor rocker-panel trimming, always verify body and suspension clearance before regular operation.
Installation Notes
- Designed as a bolt-on suspension upgrade
- No cutting required for lift installation
- No welding required
- Support the cart securely before beginning installation
- Never work beneath a cart supported only by a hydraulic jack
- Follow the supplied installation instructions
- Verify steering movement through the full range after installation
- Adjust toe and camber after installation
- Perform a front-end alignment before normal driving
- Confirm wheel and tire clearance before operating the cart
- Minor rocker-panel trimming may be required depending on tire size
- Reinspect and retighten suspension hardware after initial use
Any suspension-height change should be followed by a complete steering, suspension, and brake inspection before returning the cart to regular operation.
Whatโs Included
- AllSports 6″ A-arm lift components
- Model-specific Yamaha G29/Drive suspension components
- Required lift brackets
- Installation hardware as supplied with the kit
Wheels, tires, wheel spacers, and other accessories are sold separately unless specifically included with the kit.
Product Specifications
| Specification | Details |
|---|---|
| Brand | AllSports |
| Manufacturer SKU | ASM-D6A |
| Product Type | A-Arm Lift Kit |
| Lift Height | 6″ |
| Compatible Make | Yamaha |
| Compatible Model | G29 / Drive |
| Compatible Years | 2007-2016 |
| Lift Style | A-Arm |
| Toe Adjustment | Yes |
| Camber Adjustment | Yes |
| Increased Ground Clearance | Yes |
| Enhanced Suspension Performance | Yes |
| Recreational Use | Yes |
| Utility Use | Yes |
| Cutting Required for Lift Installation | No |
| Welding Required | No |
| Rocker-Panel Trimming | May Be Required Depending on Tire Size |
| Installation Type | Bolt-On |
| Alignment Recommended After Installation | Yes |
