Description

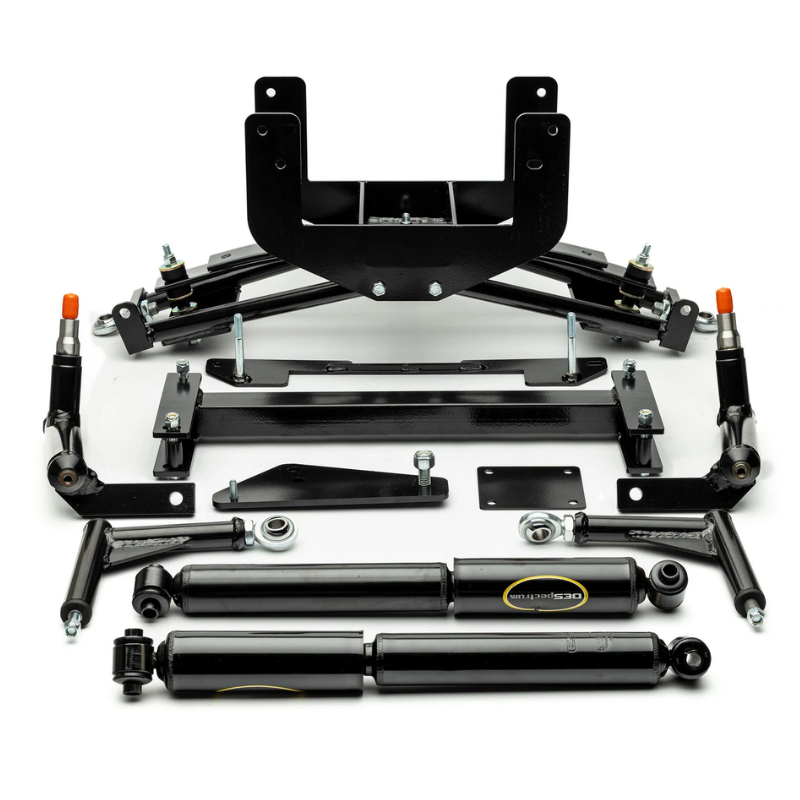

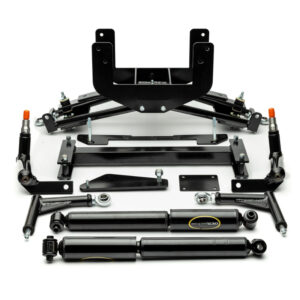

6″ AllSports A-Arm Lift Kit for Yamaha Drive2
Give your 2017-present Yamaha Drive2 the height, clearance, and aggressive stance of a serious lifted build with the AllSports 6″ A-Arm Lift Kit.
This suspension system provides a full 6 inches of lift, creating significantly more room underneath the cart and additional clearance for larger aftermarket wheels and tires.
Because Yamaha Drive2 carts were produced with multiple powertrain and rear-suspension configurations, this product is offered in three application-specific versions:
- Drive2 Electric
- Drive2 Gas
- Drive2 with Independent Rear Suspension
Choosing the correct variation is important so the lift components properly match your cart’s rear suspension configuration.
Choose the Correct Drive2 Configuration
Drive2 Electric
Choose the Drive2 Electric variation for compatible 2017-present electric Yamaha Drive2 carts using the applicable standard rear suspension configuration.
This version combines the 6″ A-arm front suspension with the rear lift components designed for the electric Drive2 application.
Drive2 Gas
Choose the Drive2 Gas variation for compatible 2017-present gas-powered Yamaha Drive2 carts using the applicable standard rear suspension configuration.
The rear lift components differ from the electric setup, so selecting the correct powertrain variation is important.
Drive2 with Independent Rear Suspension
Choose the Independent Rear Suspension variation if your Drive2 is equipped with an IRS rear suspension.
This distinction is especially important because an IRS-equipped cart requires a different rear lift configuration than a standard rear-suspension Drive2.
If your cart has independent rear suspension, select the IRS version rather than choosing based solely on gas or electric power type.
Why Choose a 6″ Lift?
A 6″ lift creates a dramatic change in both the appearance and capability of your Yamaha Drive2.
Compared with stock ride height, it provides:
- Significantly increased ground clearance
- More space for larger wheels and tires
- A taller, more aggressive stance
- Better clearance over uneven terrain
- Greater flexibility for custom wheel packages
- Improved recreational capability
- A strong foundation for utility and off-road-inspired builds
For customers who want considerably more height than a 4″ system provides, a 6″ lift delivers the stance and clearance expected from a heavily customized cart.
A-Arm Suspension Design
The AllSports system uses an A-arm front suspension design rather than relying on basic blocks or spacers.
The A-arm configuration provides a more purpose-built approach to lifting the cart while offering the adjustability needed to properly set up the front end after installation.
Benefits include:
- Improved suspension geometry
- Increased front-end clearance
- Greater suspension adjustability
- Improved handling potential
- Better suitability for larger wheel and tire combinations
- Stronger lifted appearance
Adjustable Toe & Camber
A 6″ suspension lift changes front-end geometry considerably, making proper alignment especially important.
The AllSports system includes adjustable toe and camber, allowing the front suspension to be dialed in after installation.
Proper alignment can help improve:
- Tire wear
- Straight-line tracking
- Steering response
- Handling
- Overall drivability
This adjustability becomes even more important when the lift is paired with larger or wider aftermarket wheels and tires.
Serious Ground Clearance
A full 6″ suspension lift provides substantially more clearance underneath the Drive2 than the factory suspension height.
The added clearance can be helpful when driving across:
- Uneven pavement
- Grass
- Gravel roads
- Driveway transitions
- Campground terrain
- Residential property
- Ruts and small obstacles
- Mild to moderate trails
Larger tires can further increase overall ground clearance depending on the wheel-and-tire combination selected.
Built for Recreational & Utility Use
The 6″ AllSports lift is a strong choice for carts that see more than ordinary golf-course duty.
It works well for:
- Neighborhood carts
- Campground carts
- Residential properties
- Recreational driving
- Utility applications
- Property maintenance
- Trail-oriented builds
- Custom lifted carts
The added height provides both a major visual upgrade and additional capability for carts regularly driven on uneven surfaces.
Designed for Larger Wheels & Tires
A major benefit of a 6″ lift is the additional room it creates for larger aftermarket wheel and tire combinations.
Final fitment depends on:
- Wheel diameter
- Wheel width
- Wheel offset
- Tire height
- Tire width
- Actual tire dimensions
- Suspension configuration
- Passenger and cargo load
- Other aftermarket components
Important Rocker-Panel Clearance Note
Minor trimming of the rocker panels may be required depending on the tire size and wheel configuration selected.
This does not mean trimming is required for every installation. Always verify body, suspension, and steering clearance before regular operation.
Straightforward Bolt-On Installation
Despite the substantial increase in ride height, the AllSports 6″ A-Arm Lift Kit is designed as a straightforward suspension upgrade.
Installation of the lift itself does not require:
- Cutting
- Welding
- Custom chassis fabrication
Minor rocker-panel trimming may still be necessary depending on the wheel-and-tire package selected.
Key Benefits
- Fits Yamaha Drive2 2017-Present
- Three application-specific configurations
- Drive2 Electric option
- Drive2 Gas option
- Independent Rear Suspension option
- Full 6″ lift height
- A-arm front suspension design
- Significantly improves ground clearance
- Adds room for larger wheels and tires
- Creates an aggressive lifted stance
- Adjustable toe
- Adjustable camber
- Supports proper front-end alignment
- Improved recreational capability
- Suitable for utility applications
- No cutting required for lift installation
- No welding required
- Minor rocker-panel trimming may be required depending on tire size
- Model-specific rear suspension configurations
Golf Cart Compatibility
Fits
- Yamaha Drive2
- 2017-Present
Available configurations:
- Drive2 Electric
- Drive2 Gas
- Drive2 with Independent Rear Suspension
Important Fitment Note
Yamaha Drive2 carts were produced with different rear suspension configurations.
Do not select your variation based on model year alone.
Before ordering, determine whether your cart uses:
- Standard Electric configuration
- Standard Gas configuration
- Independent Rear Suspension
If your cart is equipped with IRS, select the Independent Rear Suspension variation.
Does Not Fit
This listing is not intended for:
- Yamaha G29/Drive 2007-2016
- Yamaha G22
- Yamaha G19
- Yamaha G16
- Yamaha G14
- Yamaha G9
- Yamaha G2
- Club Car models
- EZGO models
Separate AllSports lift kits are available for those applications.
Recommended Wheel & Tire Setup
A 6″ lift provides considerably more room for aftermarket wheels and tires than a stock-height Drive2.
The ideal setup depends on:
- Intended use
- Desired ride height
- Wheel diameter
- Wheel width
- Wheel offset
- Tire tread style
- Tire height and width
- Actual manufacturer dimensions
- Cart suspension configuration
For a street-focused build, a lower-profile tire may provide a different ride and stance than an aggressive all-terrain tire of similar overall diameter.
For recreational or trail use, additional tire sidewall and tread depth may be preferable.
Always verify steering, body, and suspension clearance before regular operation.
Installation Notes
- Select the correct Drive2 configuration before installation
- Designed as a bolt-on suspension upgrade
- No cutting required for lift installation
- No welding required
- Support the cart securely before beginning work
- Never work beneath a cart supported only by a hydraulic jack
- Follow the installation instructions for your selected configuration
- Verify steering movement through the entire range
- Adjust toe and camber after installation
- Perform a complete front-end alignment
- Confirm wheel and tire clearance before regular driving
- Minor rocker-panel trimming may be required depending on tire size
- Reinspect and retighten suspension hardware after initial use
Any suspension-height change should be followed by a complete inspection of the steering, suspension, and braking systems before returning the cart to normal operation.
What’s Included
Each variation includes the suspension components required for its corresponding Yamaha Drive2 configuration.
Drive2 Electric
- AllSports 6″ A-arm front lift components
- Electric Drive2-specific rear lift components
- Required brackets
- Installation hardware
Drive2 Gas
- AllSports 6″ A-arm front lift components
- Gas Drive2-specific rear lift components
- Required brackets
- Installation hardware
Drive2 with Independent Rear Suspension
- AllSports 6″ A-arm front lift components
- IRS-specific rear lift components
- Required brackets
- Installation hardware
Wheels, tires, wheel spacers, and other accessories are sold separately unless specifically included with your selected variation.
Product Specifications
| Specification | Details |
|---|---|
| Brand | AllSports |
| Manufacturer SKU Family | ASM-DII6A -Opts |
| Product Type | A-Arm Lift Kit |
| Lift Height | 6″ |
| Compatible Make | Yamaha |
| Compatible Model | Drive2 |
| Compatible Years | 2017-Present |
| Available Configurations | Electric / Gas / Independent Rear Suspension |
| Front Lift Style | A-Arm |
| Toe Adjustment | Yes |
| Camber Adjustment | Yes |
| Increased Ground Clearance | Yes |
| Increased Tire Clearance | Yes |
| Cutting Required for Lift Installation | No |
| Welding Required | No |
| Rocker-Panel Trimming | May Be Required Depending on Tire Size |
| Installation Type | Bolt-On |
| Alignment Recommended After Installation | Yes |
