Description
Convert Your Club Car From DC to High-Performance AC Power
Upgrade a qualifying 48-volt Club Car with the power, efficiency and adjustability of the SilverWolf TEEKON 9kW / 12 HP AC Motor Conversion Kit.
The TEEKON system replaces the cartโs original DC motor and controller with a brushless AC permanent-magnet motor, an 840-amp programmable controller and SilverWolfโs intelligent Golf Car Module.
The result is a more responsive Club Car with stronger low-speed torque, increased performance potential, regenerative braking capability and selectable driving profiles controlled through the SilverWolf smartphone app.
SilverWolf part number PK-000051 is designed for qualifying:
- Club Car DS
- Club Car Precedent
- Club Car Tempo
- Club Car Onward
Fitment is not determined by the model name alone. The cart must also have the correct factory DC electrical system, Curtis controller, OEM resistive MCOR throttle and Graziano 10-spline transaxle.

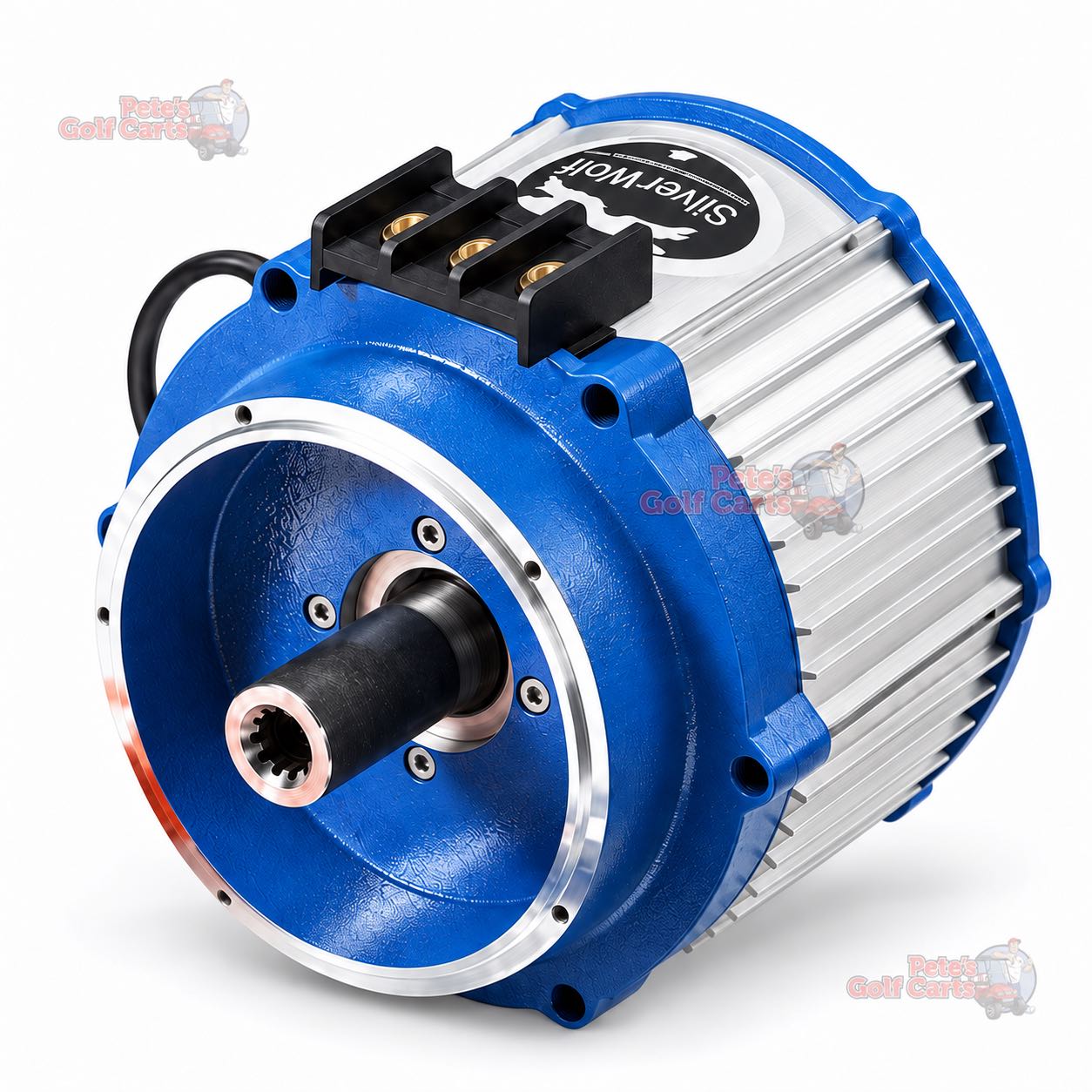

9kW / 12 HP AC Permanent-Magnet Motor
At the center of the TEEKON conversion is SilverWolfโs 48-volt brushless AC permanent-magnet motor.
Manufacturer specifications include:
- 9kW / 12 HP output
- 48-volt operating system
- Up to 75 Nm of motor torque
- Up to 8,000 RPM at 48 volts
- Approximately 37-pound installed motor weight
- Approximately 9.1 inches long by 7.8 inches high
- Direct-drive configuration
- Graziano 10-spline transaxle application
Permanent-magnet motor technology provides strong torque from low speeds without relying on brushes like a conventional DC motor.
The AC permanent-magnet system from SilverWolf Motors is approximately 57% lighter than the original equipment solution and operates at a higher efficiency than a stock DC motor.
Stronger Torque From a Stop
The TEEKON motor is designed to deliver torque earlier in the acceleration curve.
That additional low-speed response can be especially useful when:
- Accelerating from a stop
- Climbing hills
- Driving with additional passengers
- Operating a cart with a rear seat
- Moving through uneven terrain
- Pulling loads permitted by the cart manufacturer
- Recovering speed after slowing for a corner or incline
SilverWolf lists a typical pulling-force comparison of approximately 1,000 pounds for the TEEKON motor versus approximately 450 pounds for a stock golf cart motor.
This comparison is manufacturer-supplied performance information. Actual pulling ability depends on the cart, battery system, tires, gearing, terrain, vehicle condition and load. Never exceed the vehicle manufacturerโs towing, payload or operating limits.

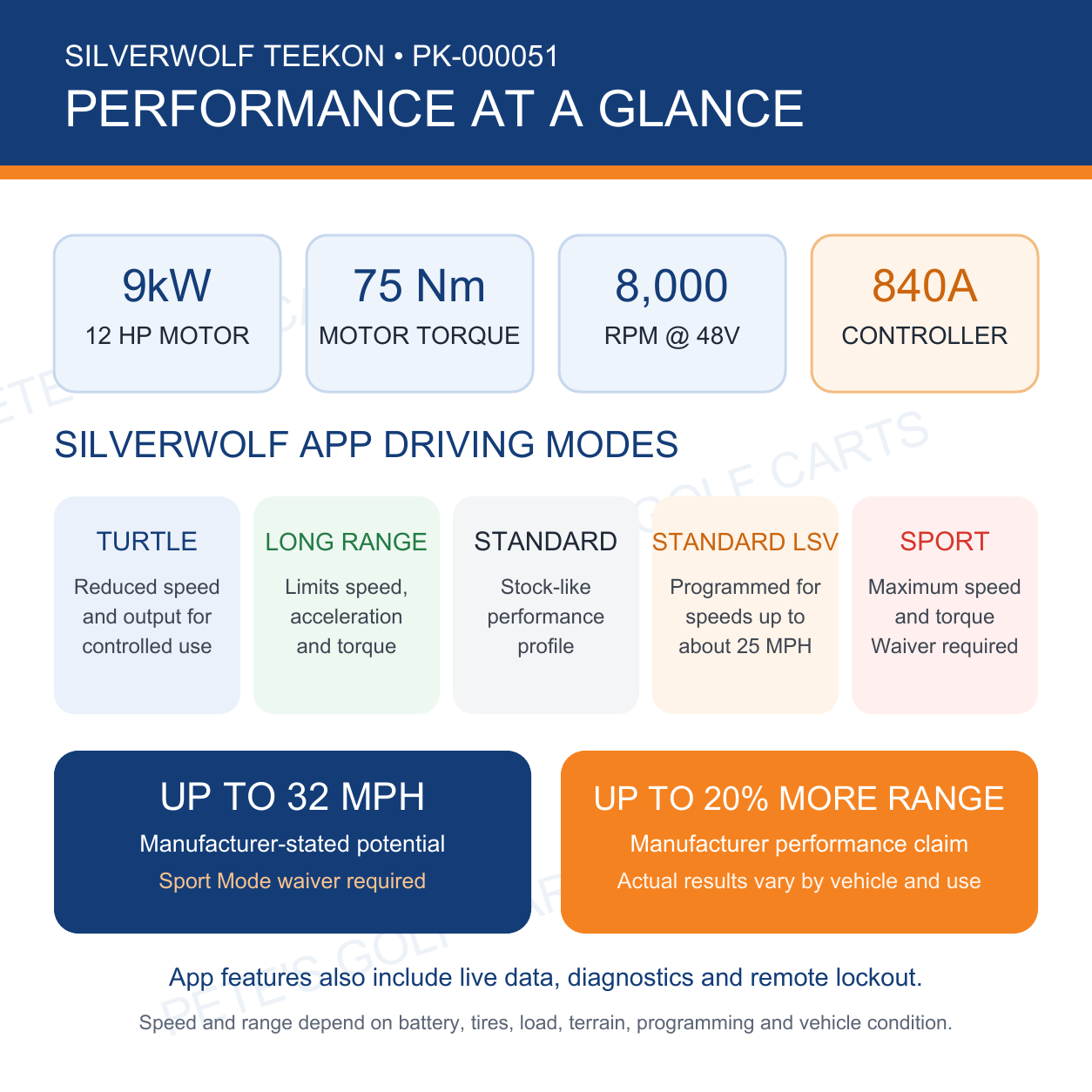

Increased Speed With Selectable Driving Modes
The SilverWolf smartphone app provides access to several preset driving profiles.
Available profiles include:
- Turtle Mode: Reduced speed and output for controlled operation
- Long Range Mode: Limits speed, acceleration and torque to help conserve battery energy
- Standard Mode: Provides performance closer to a stock golf cart
- Standard LSV Mode: Allows increased speed up to approximately 25 MPH
- Sport Mode: Unlocks the systemโs maximum programmed speed and torque settings
SilverWolf states that properly equipped carts may reach speeds of up to approximately 32 MPH with Sport Mode activated.
Sport Mode requires completion of SilverWolfโs waiver process.
Actual speed will vary based on:
- Battery voltage and condition
- Battery discharge capability
- Tire diameter
- Vehicle weight
- Passenger and cargo load
- Terrain
- Mechanical condition
- Controller programming
- Power-cable condition
- Drivetrain configuration
Never operate a golf cart faster than conditions, vehicle equipment and applicable laws safely permit.
Manufacturer-Stated Range Improvement
SilverWolf states that the TEEKON AC permanent-magnet system can provide up to approximately 20% greater range than the stock DC motor installed in a standard golf cart.
The system supports increased efficiency through:
- AC permanent-magnet motor technology
- Reduced motor weight
- Intelligent power management
- Programmable controller settings
- Regenerative braking
- Long Range driving mode
- Reduced current draw under comparable operating conditions

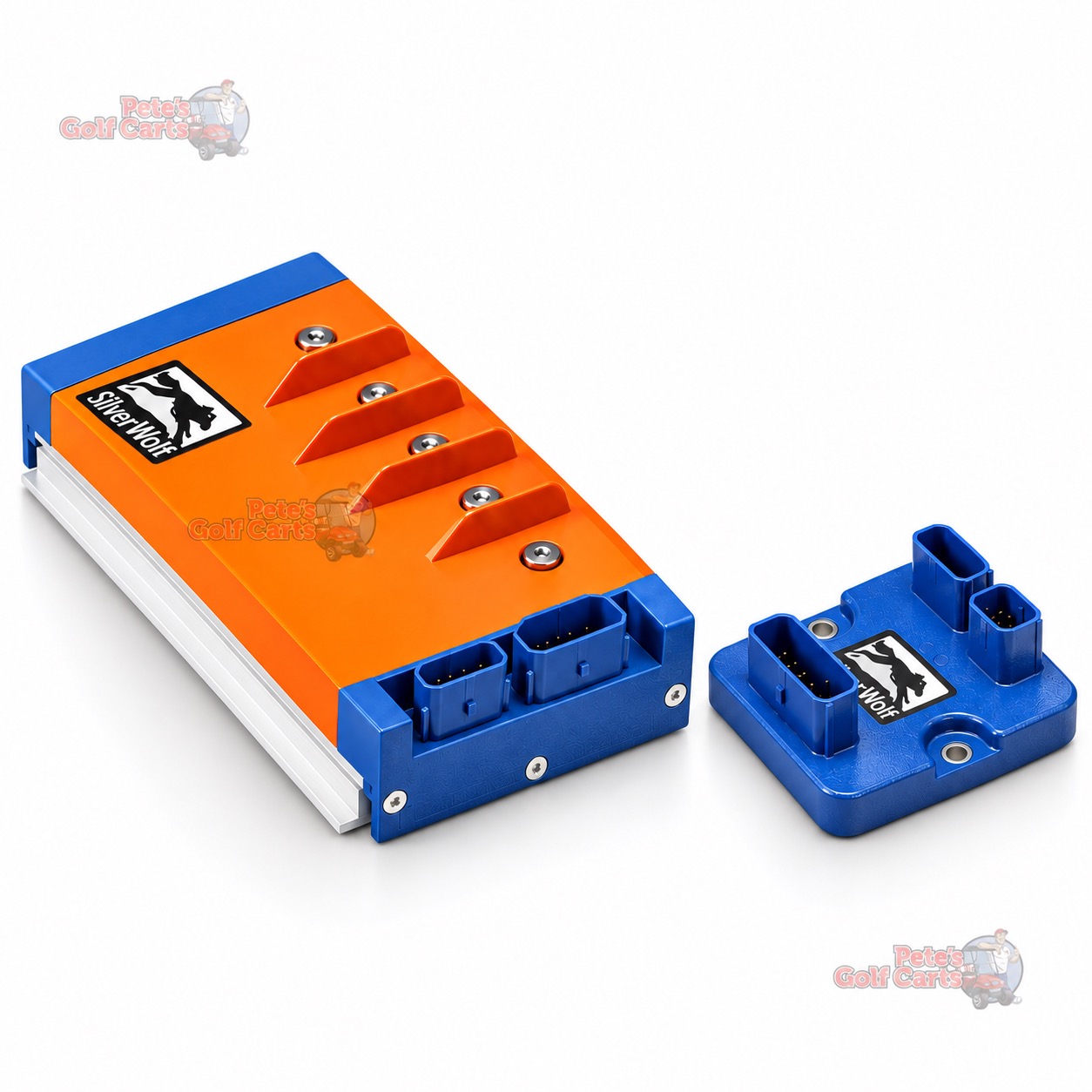

840-Amp Programmable AC Controller
The kit includes SilverWolfโs 48-volt, 840-amp AC motor controller.
Controller specifications include:
- 48-volt operation
- 840-amp rating
- CANopen communication
- Programmable protection settings
- Approximately 9.7 inches long
- Approximately 4.96 inches wide
- Approximately 2.05 inches high
Programmable protections monitor operating conditions such as:
- Motor temperature
- Controller temperature
- Battery overvoltage
- Battery undervoltage
- Motor-current limits
- Battery-current limits
These protections help manage the high-output AC drivetrain and protect the motor and controller when the system is installed and configured correctly.
Smartphone Control and Live Vehicle Information
The SilverWolf app allows compatible Apple and Android devices to communicate with the TEEKON system.
Available functions include:
- Selecting preset driving profiles
- Viewing vehicle speed
- Monitoring power output
- Viewing battery state of charge
- Checking system diagnostics
- Reviewing vehicle operating information
- Receiving compatible software updates
- Activating the remote anti-theft lockout
A smartphone is not included with the kit.
App availability, operating-system compatibility and individual functions may change with future software updates.
Remote Anti-Theft Lockout
The TEEKON system includes a remote lockout function controlled through the SilverWolf app.
This feature allows the operator to electronically lock the cart through the TEEKON control system, adding another layer of theft deterrence when the vehicle is parked.
The electronic lockout should complementโnot replaceโnormal security practices such as:
- Removing the key
- Securing the parking brake
- Storing the cart in a protected location
- Using a physical lock when appropriate
- Keeping the smartphone and account credentials secure

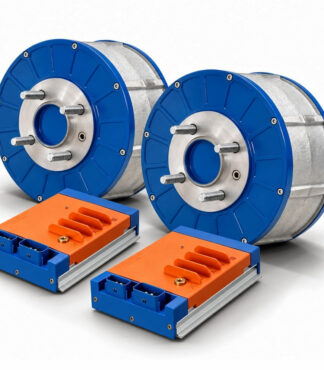

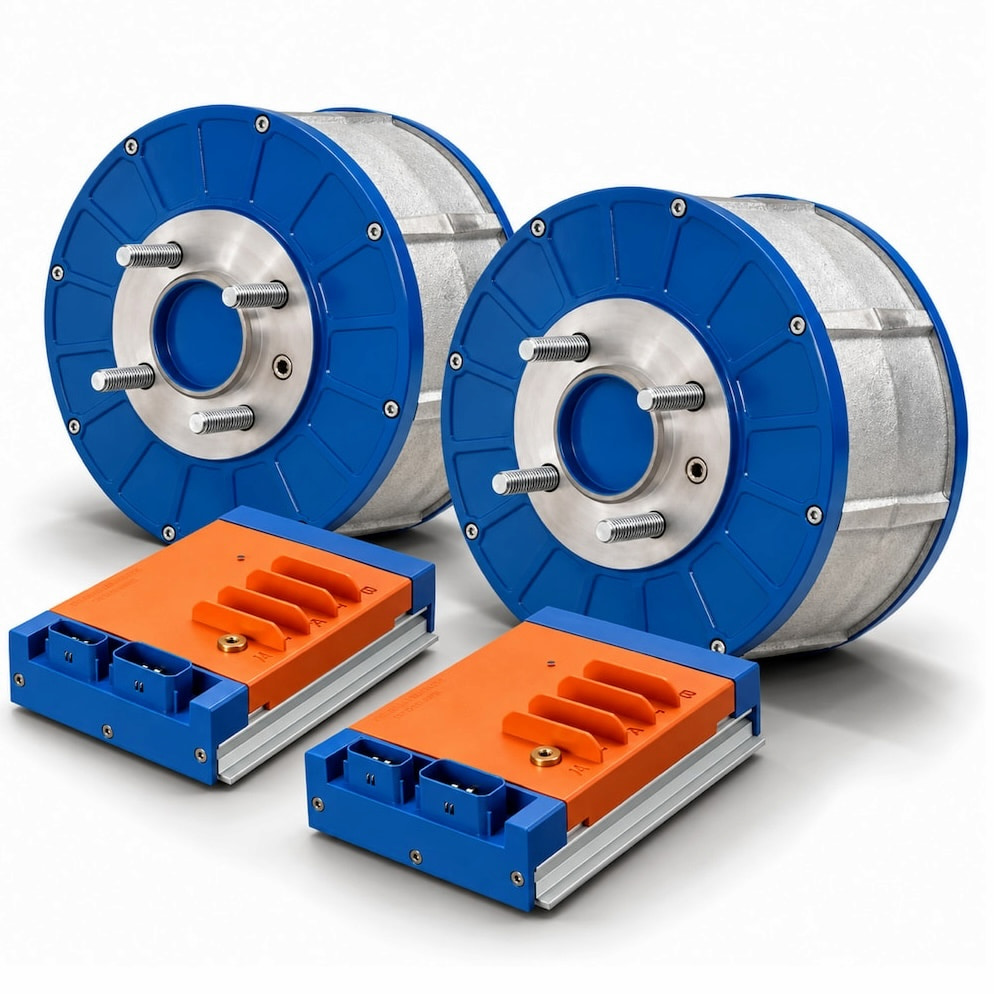

Compatible With SilverWolf Discovery 4WD
The included Golf Car Module is designed to support integration with the SilverWolf Discovery 4-Wheel Drive System for Club Car.
This creates an upgrade path for customers who may eventually want:
- Powered front wheels
- Selectable four-wheel-drive assistance
- Additional low-speed traction
- Improved hill-climbing capability
- Front-wheel regenerative braking
- Front-wheel anti-lock braking functionality
The Discovery 4WD system is not included with this TEEKON kit and must be purchased separately.
Club Car Compatibility
Club Car DS
SilverWolf lists this kit for:
- Club Car DS models from 2000.5 to present
- Original 48-volt DC drivetrain
- Correct Curtis controller
- OEM resistive MCOR throttle
- Graziano 10-spline transaxle
Model year alone does not confirm compatibility.
Club Car Precedent, Tempo and Onward
SilverWolfโs current compatibility information lists applicable Precedent, Tempo and Onward vehicles within the 2004โ2021 range.
Important exclusions include:
- 2009 Club Car Precedent
- Factory AC-powered Club Car models
- Vehicles with incompatible controllers
- Vehicles equipped with an APPS throttle
- Vehicles with incompatible transaxles
- Vehicles modified with unsupported aftermarket control systems
Because Club Car changed electrical systems, controllers and throttle configurations during these years, confirm the exact vehicle configuration before ordering.

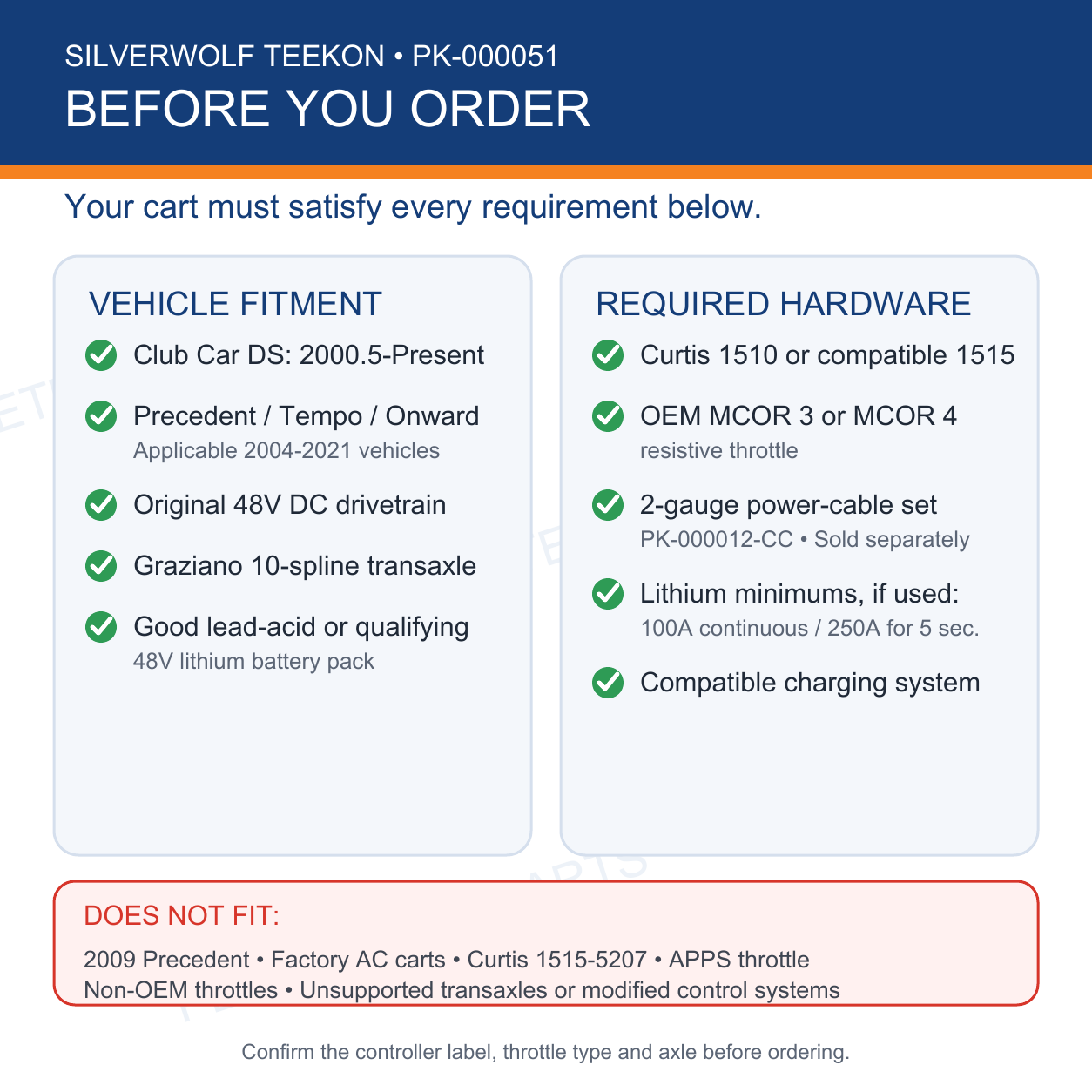

Required Vehicle Components
The vehicle must meet all applicable SilverWolf minimum requirements.
Controller
The cart must use an original stock:
- Curtis 1510 controller, or
- Compatible Curtis 1515 controller
The kit does not work with the Curtis 1515-5207 controller.
Confirm the complete controller number from the controller label rather than relying only on the cartโs model year.
Motor
The cart must have its original-style DC rear motor configuration.
This kit is designed to convert a compatible DC cart to AC power. It is not intended for a Club Car already equipped with a factory AC drivetrain.
Throttle
The cart must use an OEM:
- MCOR 3 resistive throttle, or
- MCOR 4 resistive throttle
SilverWolf specifically states:
- Do not use non-OEM throttles
- The kit does not fit Club Car APPS throttle systems
Transaxle
The cart must have the original Graziano 10-spline transaxle used on the applicable DC Club Car.
Do not order the kit without confirming the axle and motor-input configuration.
Battery Requirements
The TEEKON system may be used with an appropriate lead-acid or lithium battery system.
Lead-Acid Batteries
Lead-acid batteries must be:
- In new or good operating condition
- Properly matched as a complete battery pack
- Fully charged
- Capable of supporting a high-output motor system
- Connected with clean, tight and properly sized cables
Weak or mismatched lead-acid batteries can restrict performance and may create excessive voltage drop under acceleration.
Lithium Batteries
A compatible lithium battery must support at least:
- 100 amps continuous discharge
- 250 amps maximum discharge for five seconds
Confirm both ratings from the battery manufacturer. Battery capacity in amp-hours does not, by itself, confirm that a lithium battery can safely support the TEEKON system.
The batteryโs internal battery-management system must also be capable of handling the motor controllerโs operating demands without nuisance shutdowns.
This is a 48-volt motor-conversion system. Do not configure it as a 72-volt conversion.
Contact Peteโs Golf Carts before ordering if the batteryโs discharge ratings or system voltage are uncertain.
Two-Gauge Power Cables Are Required
SilverWolf requires 2-gauge power cables between the:
- Battery
- Motor controller
- AC motor
The required 2-gauge cable set is not included with PK-000051 and must be purchased separately.
SilverWolf identifies its application-specific Club Car cable set as PK-000012-CC in the current minimum-requirements document.
Do not assume the cartโs original cables are adequate for the TEEKON system. Undersized, corroded or poorly terminated cables can cause:
- Excessive voltage drop
- Heat buildup
- Reduced performance
- Controller faults
- Damage to electrical components
- Unsafe operating conditions
OBC and Charger Considerations
Some older Club Car carts use an onboard computer, commonly called an OBC, with the original charger.
The correct charger and OBC procedure depends on the cartโs existing battery and charging configuration.
SilverWolfโs current requirements identify additional installation materials for carts retaining the OBC and original charger. Do not bypass, modify or remove charging-system components without following the correct instructions for the exact cart.
Before installation, confirm:
- Whether the cart has an OBC
- Whether the OBC remains in active use
- Which charger is installed
- Whether the charger is compatible with the current battery pack
- Whether any OBC-related wiring changes are required
- Whether the lithium battery manufacturer requires a different charger
Contact Peteโs Golf Carts or SilverWolf when the charging configuration is uncertain.
Plug-and-Play Vehicle Integration
The TEEKON kit uses a vehicle-specific wiring harness designed to connect to the compatible factory Club Car harness.
This reduces the amount of custom wiring normally associated with a DC-to-AC conversion.
Plug-and-play does not mean universal.
The installer must still:
- Verify the controller number
- Confirm the throttle type
- Confirm the transaxle spline
- Inspect the battery system
- Install the required 2-gauge power cables
- Make secure high-current connections
- Mount the motor and controller correctly
- Route wiring away from moving or hot components
- Complete programming and setup
- Test the cart before normal operation

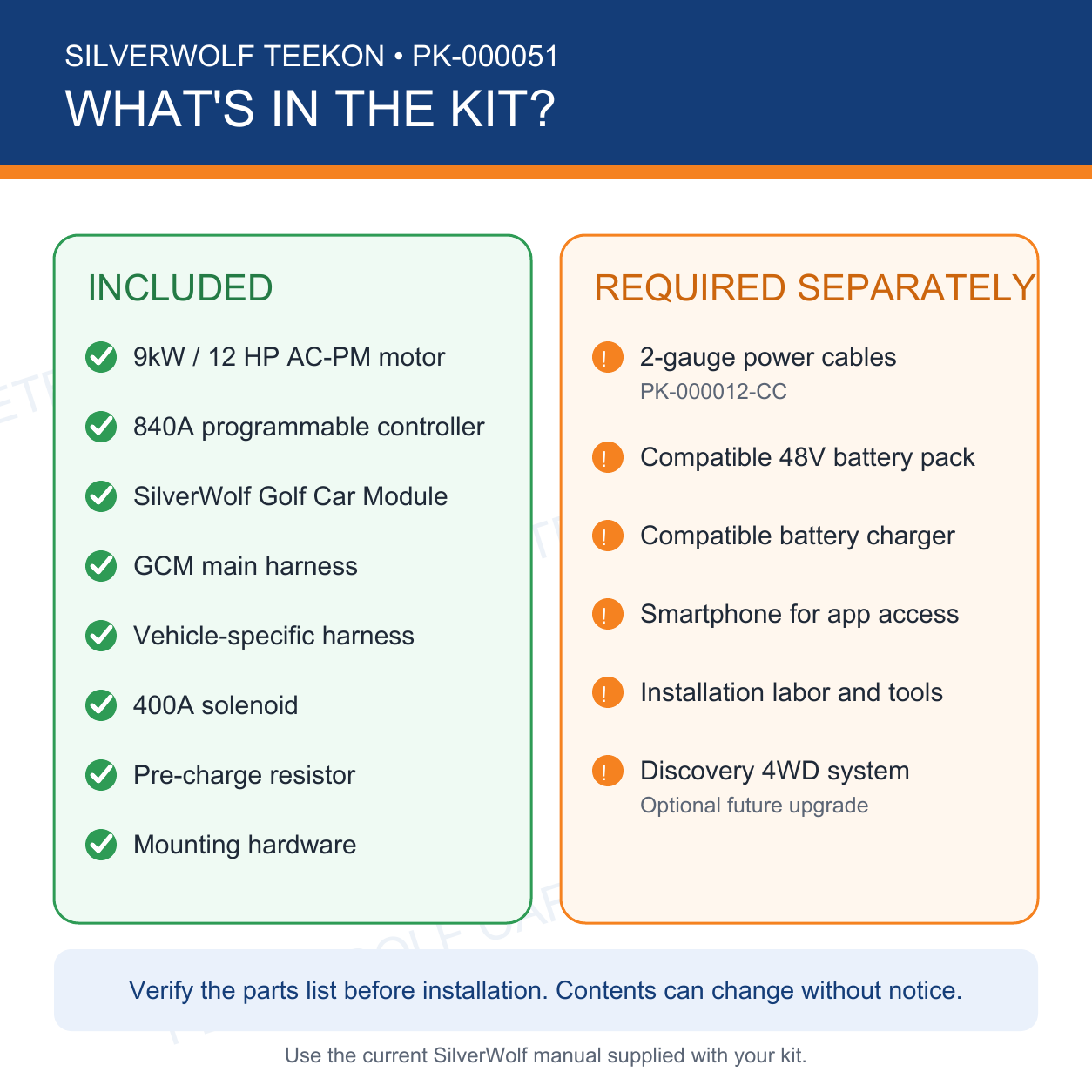

Whatโs Included

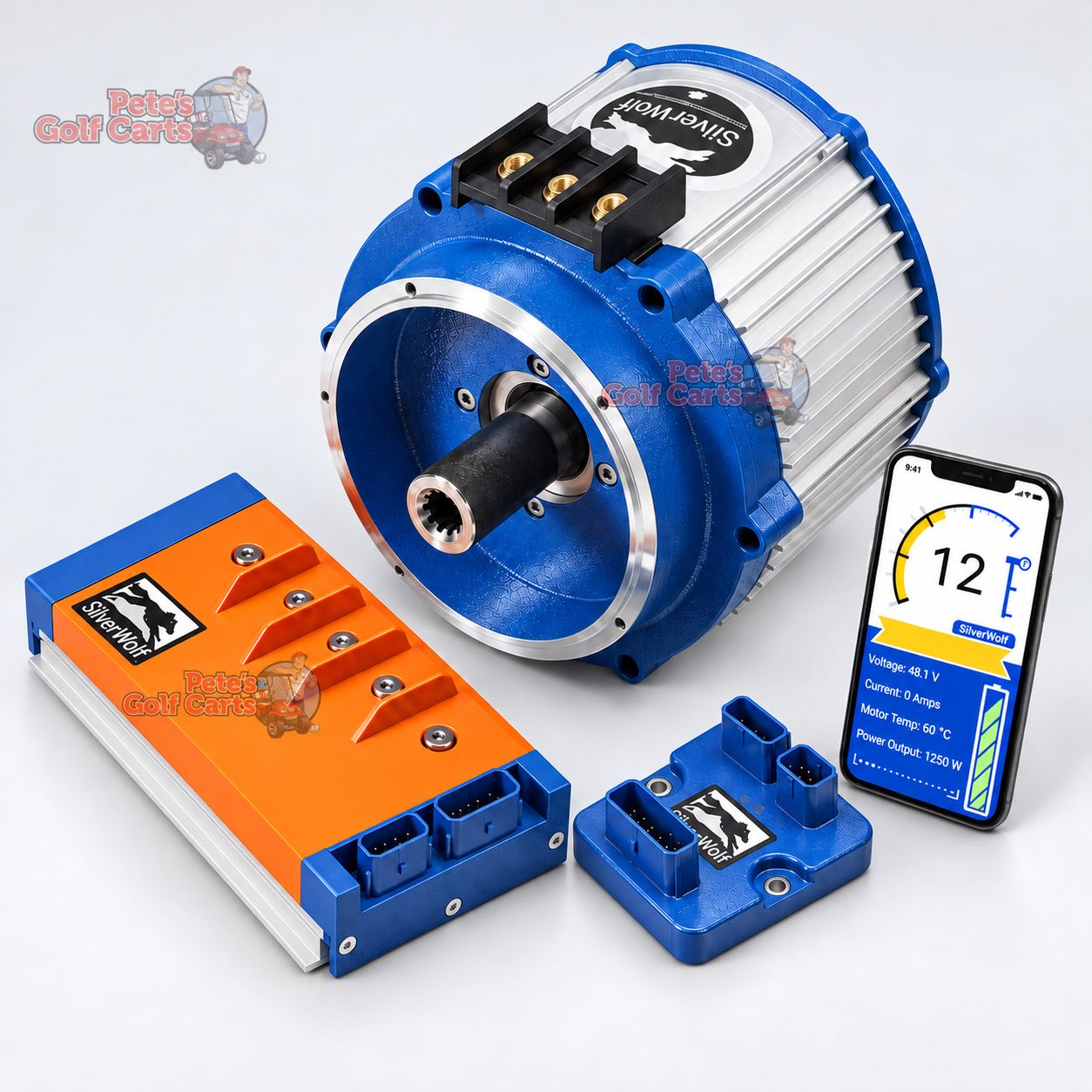

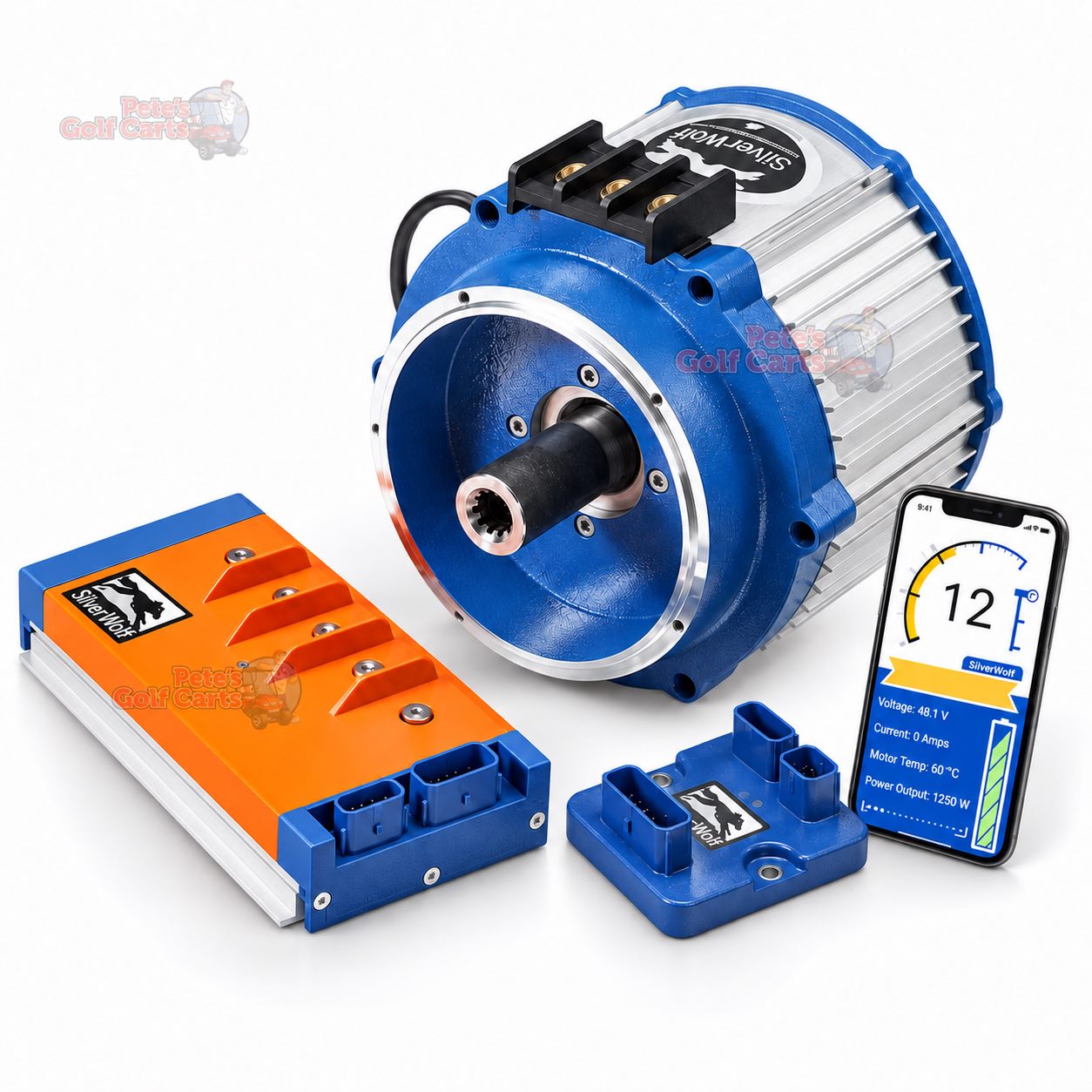

The SilverWolf TEEKON PK-000051 kit includes:
- 9kW / 12 HP AC permanent-magnet motor
- 840-amp programmable AC controller
- SilverWolf Golf Car Module
- Vehicle-specific plug-and-play wiring harness
- 400-amp heavy-duty solenoid
- Pre-charge resistor
- SilverWolf smartphone-app compatibility
- Preset driving profiles
- Remote anti-theft lockout capability
- Installation and setup information
Whatโs Not Included
Unless specifically added to the order, the following are not included:
- 2-gauge motor, controller and battery cables
- SilverWolf Discovery 4WD system
- Smartphone or mobile device
- Golf cart batteries
- Battery charger
- OBC-bypass components
- Replacement transaxle
- Replacement throttle or MCOR
- Tires or wheels
- Labor
- Specialty tools
- Additional vehicle repairs required before installation

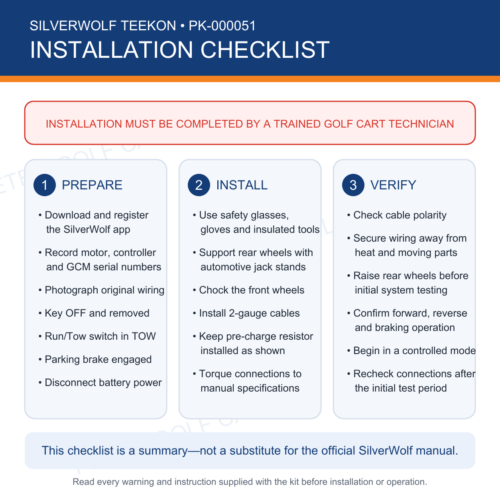

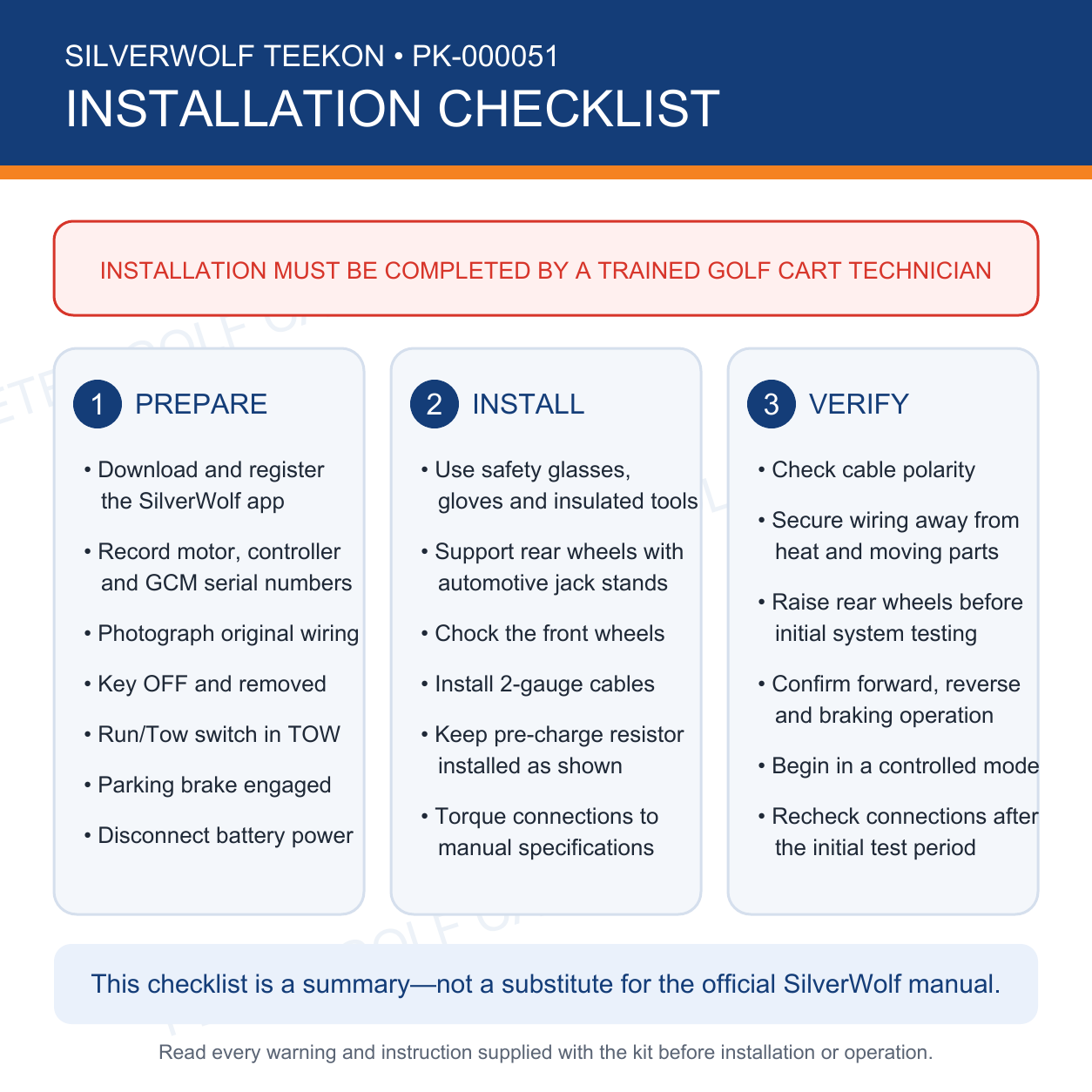

Installation Notes
This conversion involves high-current battery connections, drivetrain components, controller installation and vehicle programming.
Professional installation is strongly recommended if the installer is not experienced with:
- Golf cart electrical systems
- High-current DC battery systems
- Motor and controller replacement
- Cable routing and termination
- Vehicle support and lifting procedures
- Controller setup and diagnostics
Before beginning:
- Disconnect the battery pack using the proper procedure
- Confirm that the cart cannot move unexpectedly
- Support the vehicle securely
- Record the existing wiring configuration
- Inspect the transaxle and motor coupler
- Verify all part numbers and compatibility requirements
- Read the complete SilverWolf instructions
- Obtain the required 2-gauge cable set
- Inspect the solenoid, battery pack and charging system
- Do not modify the motor, controller or Golf Car Module
After installation:
- Confirm all high-current connections are correctly torqued
- Secure all wiring away from moving components and sharp edges
- Confirm forward and reverse operation
- Test braking and regenerative braking behavior
- Begin with a controlled driving profile
- Monitor the cart for fault messages, heat or unusual operation
- Recheck the installation after the initial test period
Performance and Safety Considerations
A high-performance motor conversion can substantially change how a golf cart accelerates, climbs, decelerates and responds to driver input.
Additional speed and torque may expose weaknesses in other components.
Inspect and service the following before operating at increased performance levels:
- Brakes
- Steering
- Wheel bearings
- Suspension
- Tires
- Wheels
- Lug nuts
- Battery cables
- Battery hold-downs
- Frame and mounting points
- Rear axle and transaxle
- Seat belts and passenger restraints
The cartโs tires must be rated for the speeds at which the vehicle will be operated.
High-speed operation may require additional safety equipment and may not be legal on public roads.
This Kit Does Not Make a Golf Cart Street Legal
The TEEKON conversion increases drivetrain performance, but it does not automatically make the cart legal for public-road use.
Depending on state and local requirements, street operation may also require:
- Headlights
- Taillights
- Brake lights
- Turn signals
- Horn
- Mirrors
- Seat belts
- Reflectors
- DOT-approved tires
- Windshield
- License-plate bracket and lighting
- Slow-moving vehicle emblem
- Vehicle registration
- Inspection
- Insurance
- Other locally required equipment
Always verify the requirements for the state, county, city, community or property where the cart will be operated.
Key Features and Benefits
- Converts a qualifying Club Car from DC to AC permanent-magnet power
- Fits qualifying Club Car DS, Precedent, Tempo and Onward carts
- 9kW / 12 HP brushless motor
- 48-volt system
- Up to 75 Nm of torque
- Up to 8,000 RPM
- 840-amp programmable controller
- CANopen communication
- Selectable smartphone driving profiles
- Remote electronic anti-theft lockout
- Manufacturer-stated speed up to 32 MPH with Sport Mode and required waiver
- Manufacturer-stated range improvement up to 20%
- Regenerative braking capability
- Plug-and-play factory-harness integration
- 400-amp solenoid included
- Pre-charge resistor included
- Golf Car Module included
- Supports future SilverWolf Discovery 4WD integration
- Compatible with qualifying lead-acid or lithium battery systems
- Two-year SilverWolf limited warranty
- SilverWolf part number PK-000051
Product Specifications
| Specification | Details |
|---|---|
| Brand | SilverWolf |
| Product Line | TEEKON |
| Manufacturer Part Number | PK-000051 |
| Product Type | DC-to-AC Golf Cart Motor Conversion Kit |
| Compatible Make | Club Car |
| Compatible Models | Qualifying DS, Precedent, Tempo and Onward |
| DS Model Years | 2000.5-Present, subject to component requirements |
| Precedent / Tempo / Onward Range | Manufacturer lists applicable 2004-2021 vehicles |
| Not Compatible With | 2009 Precedent, factory AC carts and unsupported configurations |
| System Voltage | 48 Volts |
| Motor Type | Brushless AC Permanent Magnet |
| Motor Output | 9kW / 12 HP |
| Maximum Motor Speed | 8,000 RPM at 48V |
| Motor Torque | 75 Nm |
| Motor Dimensions | Approximately 9.1″ L x 7.8″ H |
| Installed Motor Weight | Approximately 37 lbs. |
| Controller | 840-Amp Programmable AC Controller |
| Controller Voltage | 48 Volts |
| Controller Communication | CANopen |
| Controller Dimensions | Approximately 9.7″ L x 4.96″ W x 2.05″ H |
| Required Stock Controller | Compatible Curtis 1510 or 1515 |
| Excluded Controller | Curtis 1515-5207 |
| Required Throttle | OEM MCOR 3 or MCOR 4 Resistive Throttle |
| APPS Throttle Compatible | No |
| Required Transaxle | Graziano 10-Spline |
| Required Power Cables | 2-Gauge, sold separately |
| Recommended Cable Set | SilverWolf PK-000012-CC |
| Solenoid | 400-Amp Heavy-Duty Solenoid Included |
| Pre-Charge Resistor | Included |
| Lead-Acid Compatibility | Yes, batteries must be in new or good condition |
| Lithium Compatibility | Yes, subject to discharge requirements |
| Minimum Lithium Continuous Discharge | 100 Amps |
| Minimum Lithium Peak Discharge | 250 Amps for five seconds |
| Smartphone Compatibility | Compatible Apple and Android devices |
| Driving Profiles | Turtle, Long Range, Standard, Standard LSV and Sport |
| Sport Mode Requirement | SilverWolf waiver required |
| Anti-Theft Function | Remote app-controlled lockout |
| Discovery 4WD Integration | Supported through the included Golf Car Module |
| Manufacturer Warranty | Two-Year Limited Warranty |
View the Complete TEEKON Brochure Here
Warranty Information
SilverWolf warrants a new motor kit and its included accessories to the original purchaser against defects in material and workmanship under normal use and service for two years from the original retail purchase date.
Warranty coverage is subject to SilverWolfโs complete terms and exclusions.
Coverage may be affected by:
- Incorrect installation
- Abuse or abnormal strain
- Collision or accident damage
- Unauthorized modifications
- Disassembly of the motor or controller
- Use with unapproved parts
- Failure to meet SilverWolfโs minimum requirements
- Use outside the productโs intended application
- Rental or public-use vehicle applications
- Environmental damage
- Failure to follow installation or operating instructions
Proof of purchase is required for a warranty claim.
Do not open, modify or disassemble the motor, controller, Golf Car Module or other sealed components.
Why Buy From Peteโs Golf Carts?
Peteโs Golf Carts has supplied golf cart parts, batteries, accessories and performance upgrades to customers nationwide since 2014.
When you purchase your SilverWolf TEEKON kit from Peteโs, you receive:
- Help confirming Club Car model and year
- Assistance identifying the controller number
- Help distinguishing MCOR and APPS throttle systems
- Guidance confirming the Graziano 10-spline transaxle
- Help checking lithium battery discharge requirements
- Assistance selecting the required 2-gauge power cables
- Support planning future SilverWolf Discovery 4WD upgrades
- Access to compatible batteries, chargers, wheels, tires and safety equipment
- Responsive support before and after your purchase
- Service from a team that works with golf carts every day
Frequently Asked Questions
What is the current SilverWolf part number?
The current SilverWolf part number for this Club Car TEEKON kit is PK-000051.
Which Club Car models does PK-000051 fit?
It fits qualifying 48-volt Club Car DS, Precedent, Tempo and Onward carts that meet SilverWolfโs controller, motor, throttle, transaxle, battery and power-cable requirements.
Does it fit a Club Car DS?
It fits qualifying Club Car DS models from 2000.5 to present.
The cart must have the compatible factory DC system, Curtis controller, OEM resistive MCOR throttle and Graziano 10-spline transaxle.
Does it fit a 2009 Club Car Precedent?
No. SilverWolf specifically excludes the 2009 Club Car Precedent from the current fitment information for PK-000051.
Does it fit a factory AC Club Car?
No. This kit converts a compatible factory DC cart to AC power. SilverWolf states that it does not fit Club Car models already equipped with a factory AC system.
Does it work with a Curtis 1515-5207 controller?
No. SilverWolf specifically states that the TEEKON kit does not work with the Curtis 1515-5207 controller.
Does it work with an APPS throttle?
No. PK-000051 requires an OEM MCOR 3 or MCOR 4 resistive throttle. It does not fit Club Car APPS throttle systems.
Are two-gauge power cables included?
No. Two-gauge power cables are required but sold separately.
SilverWolf identifies the applicable Club Car cable set as PK-000012-CC in its current minimum-requirements document.
Is the 400-amp solenoid included?
Yes. The current kit includes a 400-amp heavy-duty solenoid and pre-charge resistor.
Can I use lead-acid batteries?
Yes. SilverWolf allows lead-acid batteries that are in new or good operating condition and capable of supporting the high-output system.
Can I use a lithium battery?
Yes, provided the lithium system meets SilverWolfโs requirements.
The battery must support at least 100 amps of continuous discharge and 250 amps of maximum discharge for five seconds.
Is this a 72-volt conversion kit?
No. This is a 48-volt TEEKON motor-conversion system.
How fast will the cart go?
SilverWolf states that properly equipped carts may reach speeds up to approximately 32 MPH with Sport Mode activated and the required waiver completed.
Actual speed varies based on the battery, tires, cart configuration, vehicle weight, terrain and programming.
Does the kit increase range?
SilverWolf states that the system can provide up to approximately 20% greater range than a stock DC motor.
Actual results depend on the cart, battery, speed, terrain, load and driving habits.
Does the kit include regenerative braking?
The AC permanent-magnet system supports regenerative braking. Braking behavior must be tested carefully after installation and may vary with programming and vehicle configuration.
Does the kit include the SilverWolf app?
The motor system supports the SilverWolf app for compatible Apple and Android devices. A smartphone is not included.
What does the anti-theft feature do?
The app allows the operator to activate a remote electronic lockout through the TEEKON system.
This feature provides additional theft deterrence but should not replace normal physical security practices.
Does PK-000051 convert the cart to four-wheel drive?
No. PK-000051 replaces the rear DC drivetrain with a high-performance AC system.
The separate SilverWolf Discovery 4WD kit is required to add powered front wheels. The included Golf Car Module supports integration with that system.
What is the part number for the E-Z-GO TXT version?
The current SilverWolf TEEKON kit for qualifying E-Z-GO TXT carts is PK-000052.
The Club Car and E-Z-GO kits are application-specific and should not be substituted for one another.
Is professional installation required?
SilverWolf describes the system as plug-and-play, but the conversion still involves high-current electrical connections, motor replacement, controller mounting, cable installation and programming.
Professional installation is strongly recommended for anyone unfamiliar with golf cart drivetrain and electrical work.
What warranty is included?
SilverWolf currently provides a two-year limited warranty to the original purchaser, subject to the manufacturerโs warranty terms, exclusions and claim procedures.
