Description
Add Serious Clearance Without Moving to a Complex A-Arm System
The MadJax 5″ Drop Axle Lift Kit transforms your EZGO TXT Electric with increased ride height, additional undercarriage clearance, and the aggressive appearance expected from a fully lifted golf cart.
Rather than relying on simple front spacers, the kit replaces the original front axle with a purpose-built five-inch drop axle. New spindles position the front wheels correctly for the lifted suspension, while the included rear lift blocks and mounting plates raise the rear of the cart to create a balanced front-to-rear stance.
This drop axle design is a strong choice for owners who want meaningful clearance for larger tires without the additional complexity or cost of a long-travel suspension system. It is well suited for neighborhood driving, campgrounds, hunting property, light trail use, and custom lifted-cart builds.
Key Benefits
- Adds 5″ of suspension lift
- Increases clearance beneath the front axle and chassis
- Creates room for larger wheel and tire packages
- Gives the cart a taller, more aggressive stance
- Includes new spindles instead of reusing the factory spindles
- Complete front and rear lift configuration
- Retains the TXTโs familiar leaf-spring suspension layout
- Powder-coated components provide a durable finished surface
- Excellent foundation for trail, campground, and recreational builds
- Less complex than a long-travel suspension conversion
Golf Cart Compatibility
Fits:
- EZGO TXT Electric: 2001.5-Up
- Standard two-leaf rear suspension configurations
- Three- and four-leaf rear spring configurations using the installation method shown in the included instructions
Will Not Fit:
- 1994-2001.5 EZGO TXT or Medalist models
- EZGO RXV models
- Club Car or Yamaha golf carts
- Gas TXT models unless compatibility is separately confirmed by Nivel
Nivelโs official description specifies electric-cart fitment even though a separate database field on the same page currently says โBOTH.โ For customer-facing fitment, electric-only is the safer and more supportable designation.
Recommended Tire Size
This five-inch lift kit is designed to accommodate:
- Up to 23″ tall tires
- Popular 22″ and 23″ lifted golf cart tire packages
- Street, all-terrain, and off-road tread options
Actual tire clearance depends on wheel offset, tire width, tread design, spring condition, rear seating, and the total weight carried by the cart. The kit accommodates tires up to 23″ tall; it does not guarantee every 23″ tire and wheel combination will clear under every setup.
Installation Notes
- The factory front axle and spindles are removed
- Factory front hubs and retained hub hardware are reused
- The steering rack is transferred to the new drop axle assembly
- Factory front shocks attach to the new axle assembly
- Rear leaf springs are repositioned according to the cartโs spring configuration
- Rear lift blocks and shock mounting plates are included
- Front toe must be adjusted after installation
- A complete front-end alignment is required before operating the cart
- Grease the new spindles during installation
- Recheck the lift components and alignment after the first hour of driving
- Regrease and inspect the hardware after approximately 50 hours of recurring use
MadJax warns that operating the cart without properly aligning the front wheels can reduce steering control and increase the risk of a rollover or crash.
Tech Tip: Inspect the front hubs, wheel bearings, tie-rod ends, rear spring bushings, and shocks while the factory suspension is disassembled. Replacing worn components during lift-kit installation can help prevent repeated labor later.

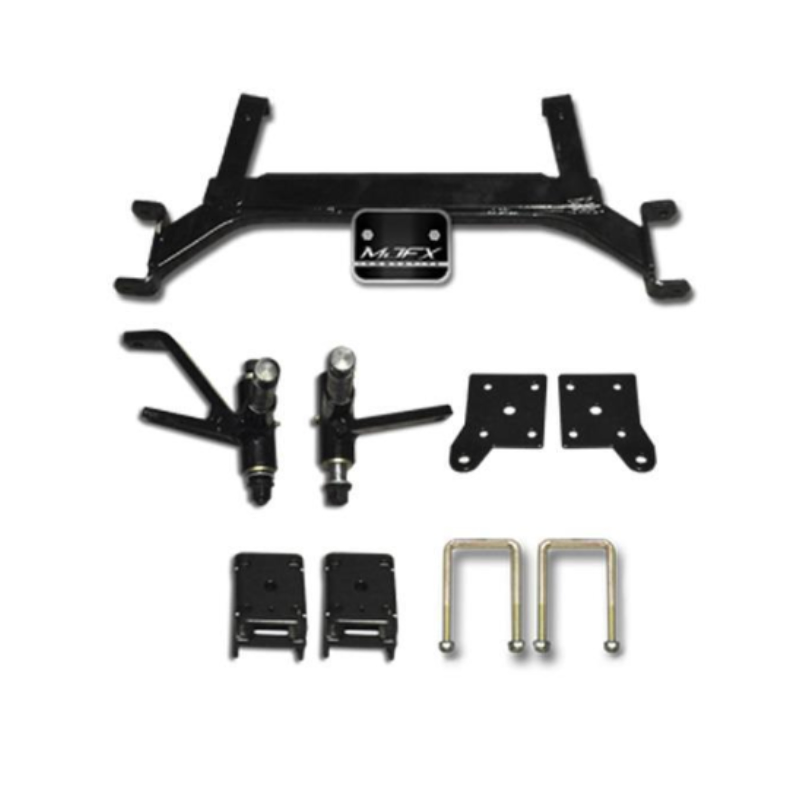

Whatโs Included
- 5″ main drop axle assembly
- Driver-side front spindle
- Passenger-side front spindle
- Spindle bushings and caps
- Bolt sleeves and axle spacers
- Driver-side rear suspension mounting plate
- Passenger-side rear suspension mounting plate
- Two rear lift blocks
- Rear suspension spacer plates
- Rear U-bolts
- Installation hardware
- Installation instructions
The official MadJax component diagram identifies Item #16-020 as the updated replacement for older Item #16-004.
Wheels, tires, front hubs, rear leaf springs, shocks, and steering components are sold separately.
Why Buy From Peteโs Golf Carts?
Peteโs Golf Carts has supplied golf cart parts and accessories since 2014, with knowledgeable assistance available before and after your purchase.
- Help verifying TXT model year and powertrain
- Wheel and tire sizing assistance
- Support choosing suspension and steering replacement parts
- Quality products from trusted golf cart brands
- Fast shipping on in-stock items
- Friendly support from a real golf cart parts team
Product Specifications
| Specification | Details |
|---|---|
| Brand | MadJax |
| Item Number | 16-020 |
| Lift Height | 5″ |
| Lift Style | Drop Axle |
| Golf Cart Compatibility | EZGO TXT |
| Model Years | 2001.5-Up |
| Powertrain Compatibility | Electric Only |
| Maximum Tire Height | Accommodates up to 23″ |
| New Front Spindles Included | Yes |
| Front and Rear Lift | Yes |
| Factory Hubs Reused | Yes |
| Finish | High-Gloss Powder Coat |
| Toe Adjustment Required | Yes |
| Alignment Required | Yes |
| Installation Type | Bolt-On Suspension Replacement |
| Freight Type | Standard |
| Previous Item Number | 16-004 |
Product specifications are based on Nivelโs current product information and the official MadJax installation manual and component diagram.
