Complete Your Yamaha Drive2 King XD Lift
The MadJax 4″ Independent Rear Suspension Lift Kit provides the rear suspension components needed to complete a King XD lift installation on compatible Yamaha Drive2 Gas golf carts.
This is not a complete standalone lift kit. Item #16-056 is the rear kit only and must be used with MadJax Front Lift Kit #16-055. Customers who need both sections should purchase the complete MadJax King XD Lift Kit #16-062, which packages the correct front and independent-rear-suspension components together.
The kit replaces the factory rear suspension subframe with a new lifted cradle. It also adds a rear shock goalpost that relocates the upper shock mounting points, allowing the factory independent control arms, differential assembly, motor mounts, and shocks to operate at the new lifted height.
When combined with the required front lift, this system delivers a versatile four-inch ride height with space for larger tires while preserving the Drive2’s independent rear suspension design.
Key Benefits
- Completes the rear portion of a 4″ King XD lift
- Raises the rear suspension to match Front Kit #16-055
- Retains the Yamaha Drive2 independent rear suspension
- Repositions the motor and differential cradle
- Relocates the upper rear shock mounting points
- Maintains a balanced front-to-rear stance
- Creates clearance for larger wheel and tire packages
- Designed specifically for the Yamaha Drive2 Gas platform
- Available separately for replacement or custom lift builds
- Uses many retained factory suspension components
Golf Cart Compatibility
Fits:
- Yamaha Drive2 Gas: 2017-Up
- Models equipped with independent rear suspension
- Yamaha Drive2 QuietTech gas models within the listed fitment
Will Not Fit:
- Yamaha Drive2 Electric models with a solid rear axle
- Yamaha G29/Drive models
- Yamaha Drive2 models requiring the solid-rear-axle kit
- Other Yamaha G-Series golf carts
- Stock-height carts unless Front Lift Kit #16-055 is also installed
For Yamaha Drive and Drive2 models with a solid or fixed rear axle, use MadJax Rear Lift Kit #16-057 instead.
Required Front Lift
Customers needing a complete MadJax front-and-rear package should purchase:
- MadJax 4″ King XD Lift Kit #16-062
Complete Kit #16-062 includes:
- Item #16-055 — King XD front lift
- Item #16-056 — independent rear suspension lift
Recommended Tire Size
When installed with the required front lift, the complete four-inch system is designed for:
- Recommended tire height: 20″-22″
- Maximum tire height: Up to 22″
- Minimum wheel size: 10″
Actual clearance depends on wheel offset, tire width, tread design, installed accessories, and the load carried by the cart. MadJax specifically warns against using tires taller than 22″ with this four-inch suspension system.
Installation Notes
Professional installation is recommended. This rear IRS kit requires substantially more disassembly than a basic solid-axle rear lift.
Installation involves:
- Supporting and removing the rear differential and motor assembly
- Removing the factory rear suspension subframe
- Transferring the motor mounts to the new cradle
- Reinstalling the factory rear control arms
- Installing the new rear shock goalpost
- Temporarily removing the bagwell and QuietTech panel
- Temporarily removing an installed rear seat kit when necessary
- Reinstalling the rear shocks at the relocated mounting points
- Completing final camber and toe adjustment after both lift sections are installed
Important model-year notes:
- On 2020-Up models, portions of the factory frame brackets must be marked, cut, deburred, and covered with corrosion-resistant paint.
- The removed factory QuietTech panel will not reinstall after the new rear cradle is fitted.
- Carts with rear seats, or carts with damaged factory threaded holes, may require drilling through the rear frame tube and bagwell for through-bolt installation.
Final camber and toe adjustments should not be completed until both the front and rear lift sections have been installed and the cart has been test-driven. The adjustment procedure is included with Front Kit #16-055.
What’s Included

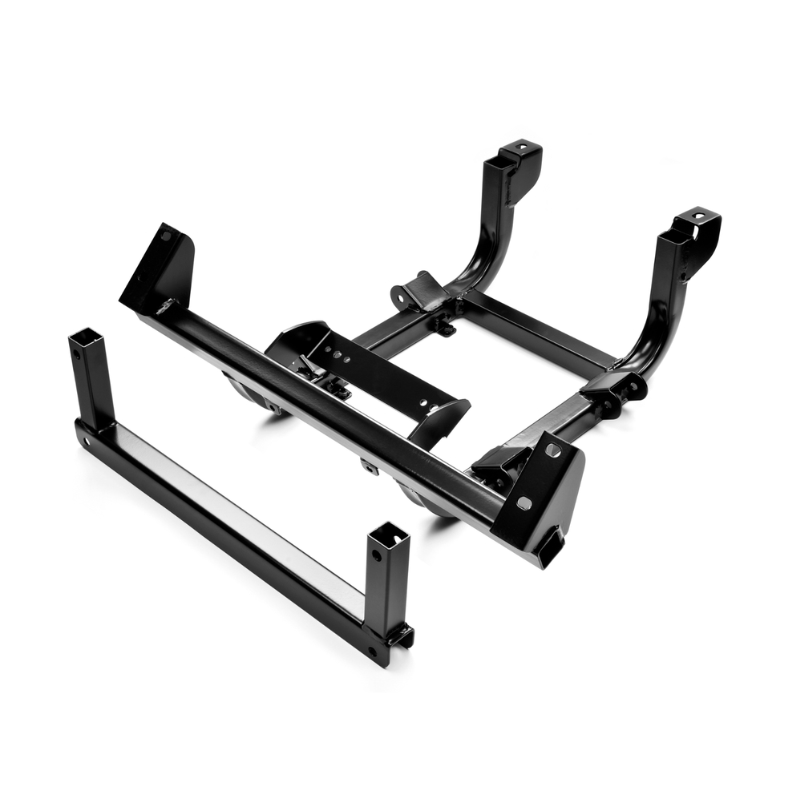

- Rear suspension cradle subframe
- Rear shock relocation goalpost
- Installation hardware
- Installation instructions
Not Included:
- MadJax Front Lift Kit #16-055
- Front suspension components
- Wheels and tires
- Rear shocks
- Installation tools
- Complete King XD lift package
The official component list identifies the rear cradle subframe, rear shock goalpost, and hardware pack as the primary parts supplied with Item #16-056.
Why Buy From Pete’s Golf Carts?
Pete’s Golf Carts has supplied golf cart parts and accessories since 2014, with knowledgeable assistance available before and after your purchase.
- Help confirming solid axle versus independent rear suspension
- Yamaha Drive2 model and powertrain verification
- Assistance determining whether you need a rear component or complete lift
- Wheel and tire sizing support
- Quality parts from trusted golf cart brands
- Fast shipping on in-stock products
Product Specifications
| Specification | Details |
|---|---|
| Brand | MadJax |
| Item Number | 16-056 |
| Product Type | Independent Rear Suspension Lift |
| Lift Height | 4″ when used with required front kit |
| Lift Position | Rear Only |
| Golf Cart Compatibility | Yamaha Drive2 Gas |
| Model Years | 2017-Up |
| Rear Suspension Type | Independent Rear Suspension |
| Required Front Kit | MadJax #16-055 |
| Complete MadJax Lift Kit | MadJax #16-062 |
| Recommended Tire Height | 20″-22″ with complete lift |
| Maximum Tire Height | Accommodates up to 22″ |
| Minimum Wheel Size | 10″ |
| Rear Cradle Included | Yes |
| Rear Shock Relocation | Yes |
| Drilling May Be Required | Yes |
| Cutting Required | 2020-Up models |
| Professional Installation Recommended | Yes |
| Freight Type | Standard |
Specifications and fitment are based on Nivel’s product page and the official MadJax installation instructions.
