Description

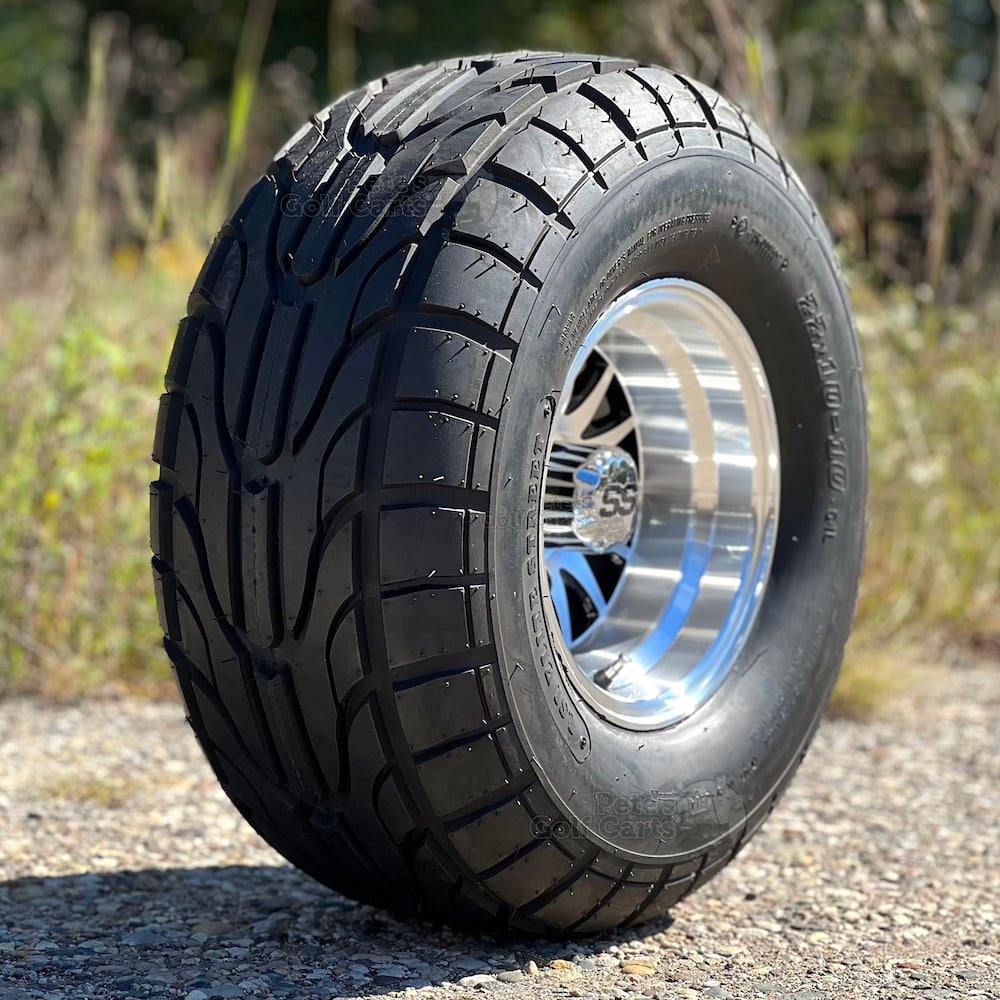

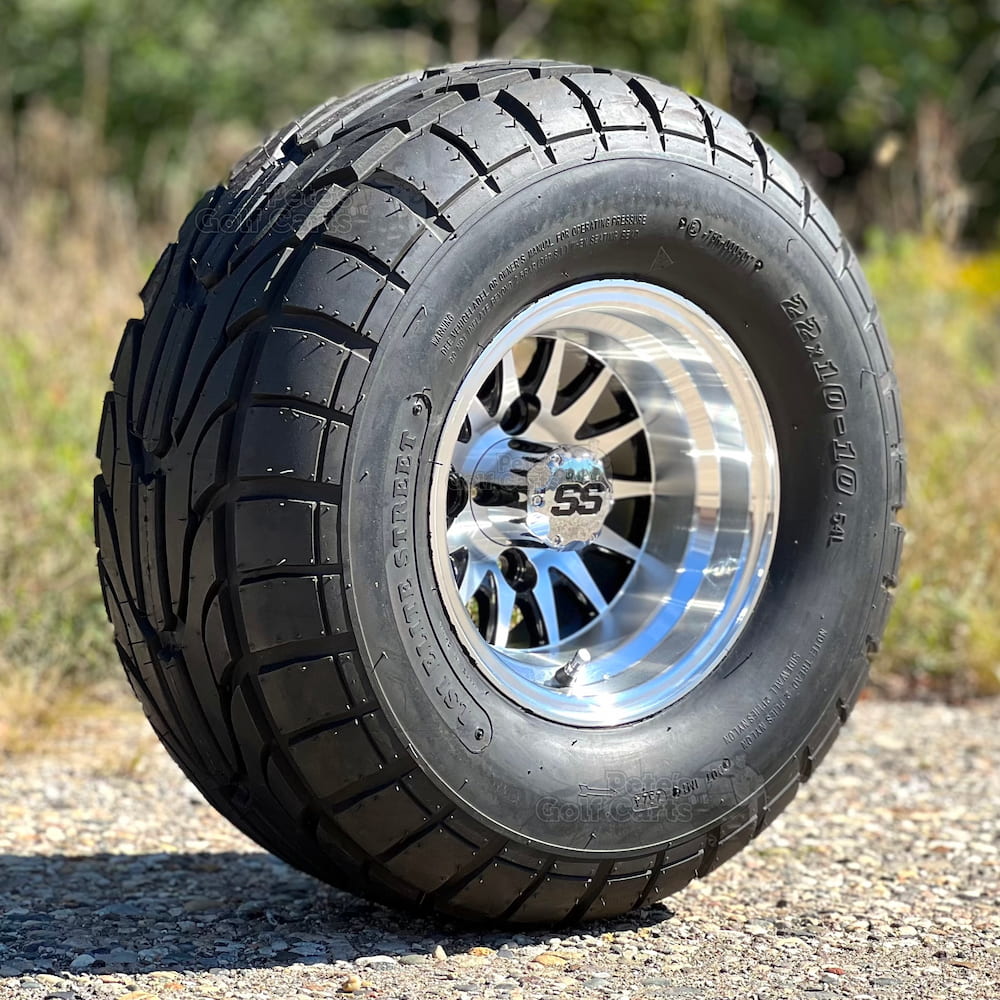

A Complete Phoenix Wheel and Tire Upgrade
Transform the stance and appearance of your lifted golf cart with the LSI 14-Spoke Phoenix wheel-and-tire combination.
This complete package pairs four black-and-machined 10-inch Phoenix aluminum wheels with four 22×10-10 LSI Elite tires. The wheelโs fourteen-spoke face, bright machined accents, and deep machined lip complement the tireโs substantial 22-inch profile and directional tread.
The result is a coordinated package that delivers a wider, more commanding appearance along with the additional ground clearance expected from a lifted golf cart.
Each package includes four mounted wheel-and-tire assemblies, four matching center caps, and your choice of black or chrome lug nuts in standard or metric/Yamaha thread.

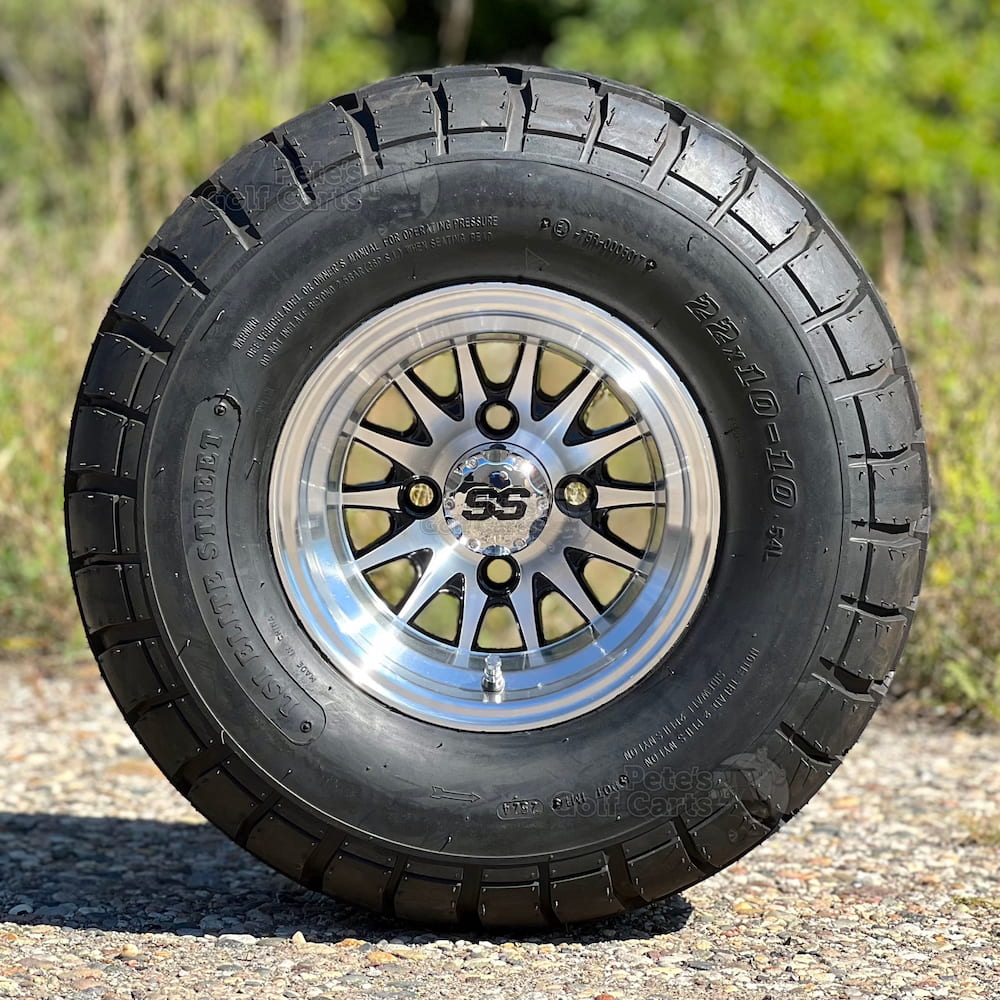

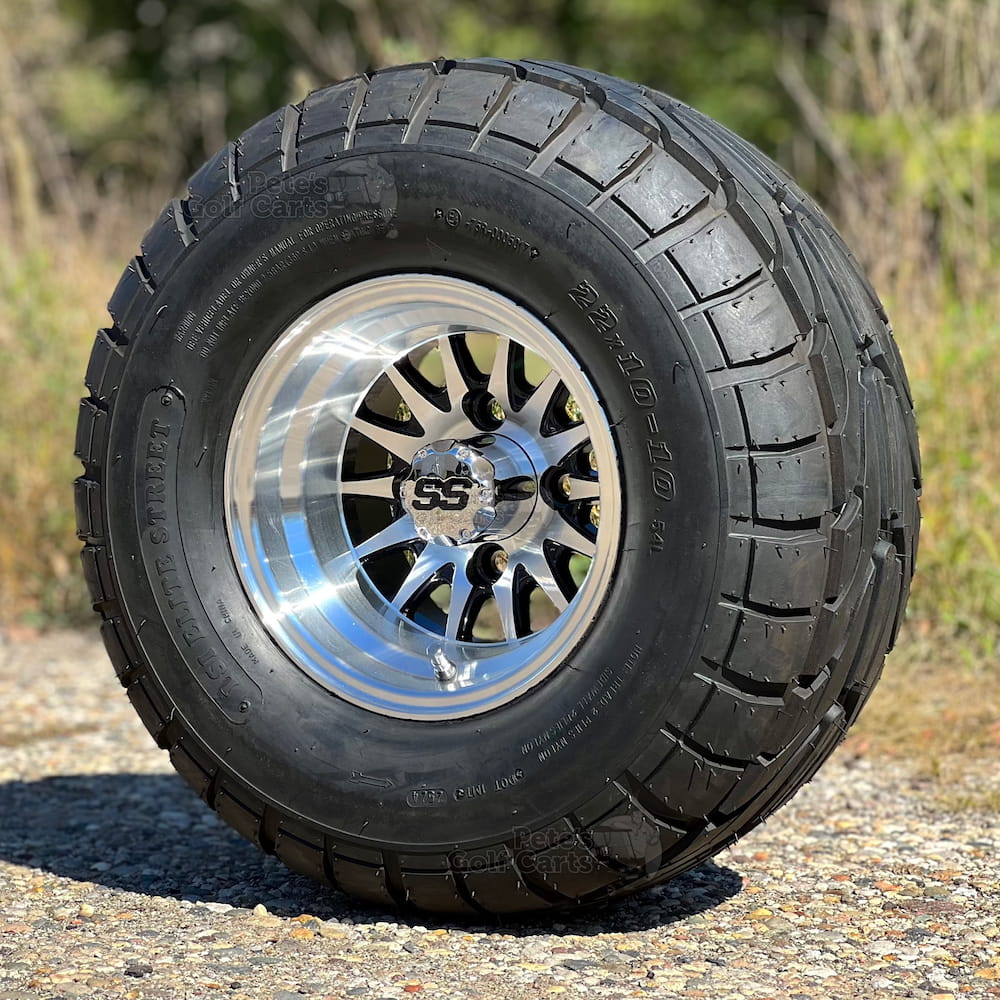

14-Spoke Phoenix Black and Machined Wheels
The 14-Spoke Phoenix combines a classic 10×7 golf cart wheel size with a bold, highly detailed appearance.
Its 14-spoke face uses a contrasting black-and-machined finish that highlights each spoke against the darker wheel windows. A bright machined outer lip adds visual depth and gives the wheel a clean, finished appearance from nearly any angle.
The lightweight aluminum wheel uses a common 4×101.6 golf cart bolt pattern and a -25ET offset. That negative offset helps produce the wider stance commonly associated with lifted golf carts and oversized tire packages.
Phoenix wheel features include:
- 14-Spoke Phoenix design
- 10×7 wheel size
- Black-and-machined finish
- Aluminum construction
- 4×101.6 bolt pattern
- -25ET offset
- Approximately 10 pounds per wheel
- Matching center cap included with each wheel

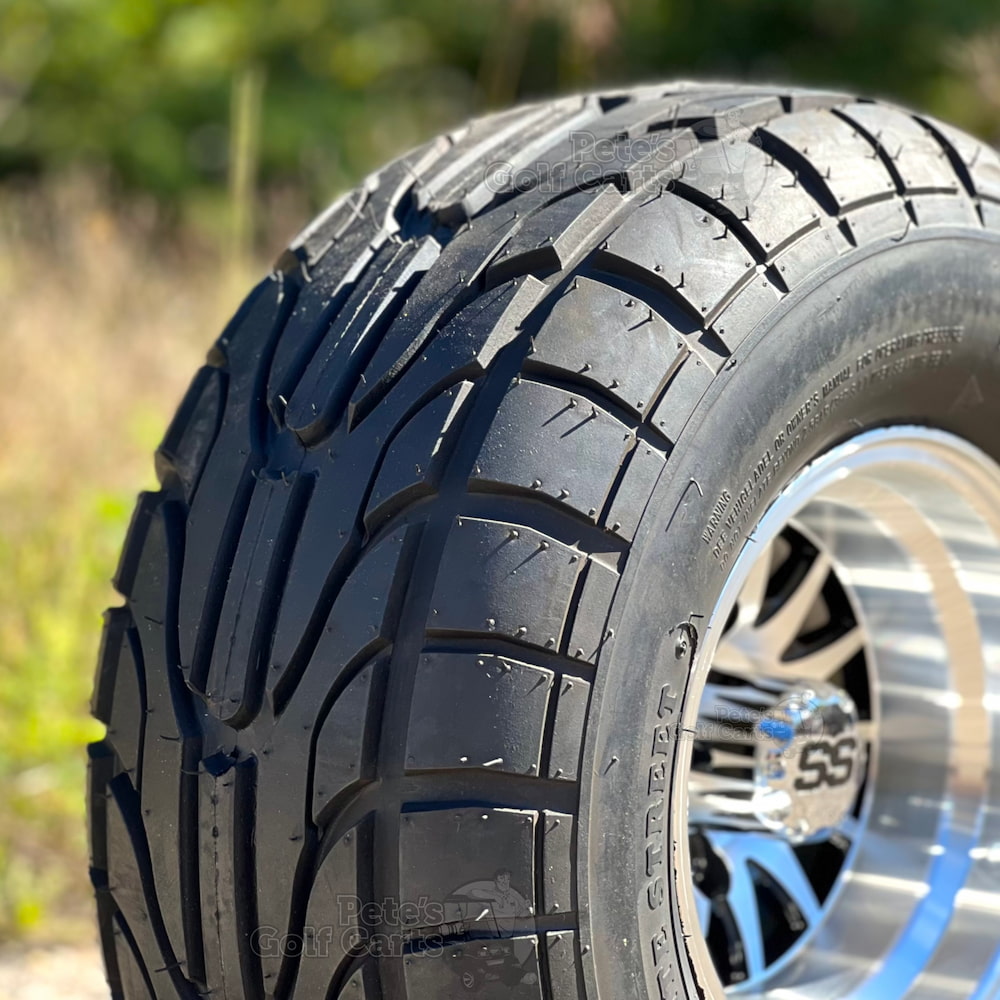

LSI Elite 22×10-10 DOT Tires
Each Phoenix wheel is paired with an LSI Elite 22×10-10 tire.
The tireโs approximately 22-inch overall height provides a larger footprint and a more substantial appearance than a standard golf cart tire. Its directional tread uses broad tread blocks and defined channels across the tire face for an aggressive, performance-oriented look.
LSI Elite DOT Street tire features include:
- 22×10-10 tire size
- Approximately 22-inch overall height
- Designed for a 10-inch wheel
- 4-ply construction
- Directional tread pattern
- DOT designated
- Approximately 20 pounds per tire
- Minimum 6-inch lift required
Designed for Lifted Golf Carts
This wheel-and-tire package is intended for lifted golf carts and is not recommended for stock-height applications.
The 22×10-10 LSI Elite tire requires a minimum 6-inch lift. Proper clearance should be verified around the cartโs body, wheel wells, suspension, steering components, and accessories before installation.
Actual clearance can vary based on:
- Golf cart make and model
- Lift-kit design
- Suspension condition
- Body style and body modifications
- Fender flares
- Steering components
- Wheel alignment
- Passenger and cargo weight
- Additional suspension accessories
After installation, turn the steering fully in both directions and inspect the tire clearance. Clearance should also be checked with passengers or representative operating weight aboard the cart.
Golf Cart Fitment
The Phoenix wheels use the common 4×101.6 golf cart bolt pattern found on many Club Car, E-Z-GO, Yamaha, and compatible golf carts.
Basic fitment requirements include:
- Minimum 6-inch lift
- 4×101.6 wheel bolt pattern
- Adequate clearance for an approximately 22-inch-tall tire
- Correct lug-nut thread selection
- Serviceable steering and suspension components
A matching bolt pattern does not guarantee sufficient tire clearance. Lift height, body configuration, wheel-stud thread, suspension condition, and existing modifications must all be considered before ordering.
This package may be used on either gas or electric golf carts when all physical fitment requirements are met.
Choose the Correct Lug Nuts
Each package includes your choice of lug-nut finish and thread.
Lug-nut finish options:
- Chrome
- Black
Lug-nut thread options:
- Standard
- Metric
Standard-thread lug nuts are commonly used on many Club Car and E-Z-GO golf carts. Metric lug nuts are commonly required for Yamaha applications.
However, replacement hubs, axles, wheel studs, and previous modifications can change the required thread. Always confirm the actual wheel-stud thread on your cart before ordering.
Never force a lug nut onto a wheel stud. The correct lug nut should start smoothly by hand.
DOT Tires and Street-Legal Golf Carts
The included LSI Elite tires are listed by the supplier as DOT tires. This makes them an excellent consideration for neighborhood, campground, resort, and low-speed-vehicle builds where DOT-designated tires may be required.
Installing DOT tires does not automatically make a golf cart street legal.
Depending on state and local regulations, a street-driven golf cart or low-speed vehicle may also require:
- Headlights and taillights
- Brake lights
- Turn signals
- Horn
- Reflectors
- Rearview and side mirrors
- Seat belts
- DOT-approved windshield
- Windshield wiper
- Vehicle identification number
- Registration and insurance
- Additional speed or braking equipment
Always verify the requirements that apply where the golf cart will be operated.
What Is Included?
Each complete wheel-and-tire package includes:
- Four LSI 14-Spoke Phoenix 10×7 wheels
- Four LSI Elite 22×10-10 tires
- Four matching SS-branded center caps
- One selected lug-nut set
- Choice of black or chrome lug-nut finish
- Choice of standard or metric/Yamaha lug-nut thread
- Wheel-and-tire mounting
Product Specifications
Wheel manufacturer: LSI
Wheel part number: 10051
Wheel design: 14-Spoke Phoenix
Wheel size: 10×7
Wheel material: Aluminum
Wheel finish: Black and machined
Wheel bolt pattern: 4×101.6
Wheel offset: -25ET
Wheel weight: Approximately 10 pounds each
Center caps: Included
Tire manufacturer: LSI Elite
Tire part number: 10505
Tire size: 22×10-10
Tire height: Approximately 22 inches
Tire construction: 4-ply
Tire classification: DOT-designated directional all-terrain tire
Tire weight: Approximately 20 pounds each
Lift required: Yes
Minimum lift: 6 inches
Lug-nut finishes: Black or chrome
Lug-nut threads: Standard or metric/Yamaha
Gas or electric compatibility: Both, when all fitment requirements are met
Package quantity: Four mounted wheel-and-tire assemblies
Installation Recommendations
Before installation, verify that your cart has a minimum 6-inch lift, a 4×101.6 wheel bolt pattern, sufficient tire clearance, and the correct wheel-stud thread.
Start every lug nut by hand to prevent cross-threading. Tighten the lug nuts gradually in a crisscross or star pattern and torque them according to the golf cart and fastener manufacturersโ specifications.
After installation:
- Verify tire pressure before driving
- Check clearance at full left and right steering lock
- Inspect clearance throughout the suspensionโs movement
- Recheck clearance with passengers or representative weight aboard
- Recheck lug-nut torque after the initial drive
- Inspect the assemblies periodically for looseness or unusual wear
Do not use an impact wrench to start the lug nuts. Cross-threaded or improperly tightened lug nuts can damage the wheel studs and create an unsafe condition.
Wheel and Tire Care
Clean the Phoenix wheels regularly using mild automotive soap, clean water, and a soft cloth or brush.
Avoid harsh acids, abrasive cleaners, steel wool, and aggressive wheel-cleaning chemicals. These products may damage the machined and coated surfaces.
Remove mud, fertilizer residue, road salt, brake dust, and other contaminants promptly. Do not allow strong cleaning products to dry on the wheel.
Check tire pressure when the tires are cold and inspect the tires regularly for:
- Cuts or punctures
- Sidewall cracks
- Embedded objects
- Tread damage
- Uneven wear
- Incorrect inflation
Uneven tire wear may indicate incorrect pressure, improper alignment, worn steering components, or a suspension problem.
Why Buy From Peteโs Golf Carts?
Peteโs Golf Carts helps take the uncertainty out of matching golf cart wheels, tires, lift kits, and installation hardware.
With this Phoenix package, you receive a coordinated set of wheels, tires, center caps, and your selected lug nuts in one convenient package.
If you are unsure about your golf cartโs lift height, bolt pattern, tire clearance, or wheel-stud thread, contact us before ordering. Confirming a few fitment details ahead of time can prevent the frustration and expense of ordering the wrong package.
Frequently Asked Questions
Are These Wheels Called Phoenix?
Yes. Phoenix is the alternate design name used for LSI wheel SKU 10051. This wheel is also called the “14-Spoke” Black & Machined Wheel.
Is This a Complete Set of Four?
Yes. The package includes four Phoenix wheels, four LSI Elite tires, four matching center caps, and one selected lug-nut set.
Are the Tires Already Mounted?
Yes. The tires and wheels are supplied as mounted assemblies. Tire pressure, lug-nut torque, and vehicle clearance must still be verified before driving.
Are the Assemblies Balanced?
Mounting is included. Balancing should not be assumed unless it is specifically confirmed with the order.
Does This Package Require a Lift Kit?
Yes. The 22×10-10 LSI Elite tires require a minimum 6-inch lift.
Will This Package Fit a Stock-Height Golf Cart?
No. These approximately 22-inch-tall tires are intended for lifted golf carts.
Will It Fit Club Car, E-Z-GO, and Yamaha Carts?
The wheels use a common 4×101.6 golf cart bolt pattern, but final fitment also depends on lift height, wheel-stud thread, body clearance, suspension configuration, and existing modifications.
Which Lug Nuts Should I Order?
Select standard-thread lug nuts for carts equipped with standard wheel studs and metric/Yamaha lug nuts for carts equipped with metric studs.
Standard threads are common on many Club Car and E-Z-GO carts, while metric threads are common on Yamaha carts. Always confirm the actual thread before ordering.
Is There a Performance Difference Between Black and Chrome Lug Nuts?
No. Black and chrome are finish choices. Select the color that best complements your cart and Phoenix wheels.
Are These DOT Tires?
The supplier lists LSI Elite SKU 10505 as a DOT tire. DOT-designated tires alone do not make a golf cart street legal.
Can I Use This Package on a Street-Legal Golf Cart?
Yes, the DOT-designated tires can be one part of a street-legal or low-speed-vehicle build. Your cart may still require lights, mirrors, turn signals, seat belts, a DOT-approved windshield, registration, insurance, and other equipment.
Will the Tires Rub?
A minimum 6-inch lift is required, but actual clearance depends on the golf cart, lift-kit design, body, suspension, steering, alignment, and operating weight. Clearance must be inspected after installation.
Is This Package Compatible With Gas and Electric Carts?
Yes. The package may be installed on gas or electric golf carts when all bolt-pattern, lift-height, lug-thread, and clearance requirements are met.
