Description

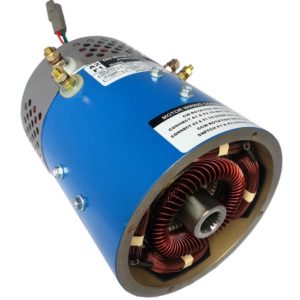

High Speed & Torque Electric Motor for GEM Cars
Give your GEM car a stronger, more responsive feel with this high speed and torque electric motor, part number 170-501-0002B. This motor is designed as a direct HD OEM-style replacement upgrade for GEM car applications and is a strong option if you want more horsepower, better acceleration, and reliable higher-speed performance.
Compared to many stock GEM motors, this upgraded motor is built to provide approximately 20% more power, while maintaining dependable drivability for street, neighborhood, campus, facility, or utility use. The current listing notes that this motor is rated at 4950 RPM, compared to a stock GEM motor rating of around 4000 RPM.
This motor is best suited for:
- GEM car motor replacement and upgrade projects
- Customers wanting more horsepower than stock
- GEM cars needing better acceleration
- Street, neighborhood, campus, and facility use
- Owners who want 25–27 MPH performance potential
- Builds where both speed and torque matter
- Replacing older 3.5 HP, 5 HP, or 7 HP GEM motors
This is a great choice if you want a stronger all-around GEM motor without turning the vehicle into an overly aggressive or highly custom build.
Performance Expectations
This is a high speed and torque performance motor. Your current listing notes that it can provide approximately 25–27 MPH without controller programming, with 30+ MPH potential when paired with controller reprogramming.
Expected performance:
- Approximate speed: 25–27 MPH
- Controller reprogrammed speed potential: 30+ MPH
- Power: 7.5 HP
- Motor RPM: 4950 RPM
- Performance gain: Approximately 20% more power than stock
- Spline: 19-tooth Dana spline
- Performance style: High speed and torque
Actual performance can vary based on controller programming, battery condition, tire size, tire pressure, terrain, passenger/load weight, vehicle condition, and overall setup.
Designed for:
- GEM car applications
- GEM models using the compatible 19-tooth Dana spline
- Replacement for many 3.5 HP, 5 HP, and 7 HP GEM motor applications
Common OEM / cross-reference numbers listed on the current product page include:
- Advanced DC 0613-00959
- GJ0-4001
- 0613-00008
- 0613-00248
- 0613-00541
- 0613-00724
- 2412172
- 2412173
- 241501
- 5BC59JBS6300A
- 5BC49JB6007
- 5BC59JBS6368A
- D6368
Key Features
- High speed and torque GEM car motor upgrade
- Direct HD OEM-style replacement design
- Approximately 20% more power than many stock motors
- Rated at 4950 RPM
- 7.5 HP performance rating
- Can replace many 3.5 HP, 5 HP, and 7 HP GEM motors
- 19-tooth Dana spline
- Vented design for improved heat management
- Class H thermal rating
- Made in the USA
- Plug-and-play style installation for compatible applications
- Higher performance potential with controller reprogramming
Technical Details
- Manufacturer: D&D Motor Systems
- Part Number: 170-501-0002B
- Voltage Rating: 72V
- Current Rating: 95/8
- RPM: 4950
- Power: 7.5 HP
- Duty Rating: S2 30 Min
- Insulation / Thermal Rating: Class H
- Rotation: CW drive end; CCW possible by switching F1 and F2 connections
- Spline Count: 19-tooth
- Spline Pitch: 24/48
- Pressure Angle: 45°
- Spline Type: Internal involute spline
- Speed Sensor Connector: Deutsch DT04-3P
- Motor Weight: Approximately 46 lbs
- Performance Spec: 5 / K-254
- Made in: USA
The D&D outline print for 170-501-0002B shows a 72V motor with 7.5 HP, Class H insulation, 19-tooth internal involute spline, 24/48 spline pitch, 4950 RPM rating, Deutsch speed sensor connector, and approximately 46 lb motor weight.
Before You Order
GEM motor compatibility depends on more than the vehicle model name. Before ordering, please verify:
- Your vehicle is a GEM car
- Your current motor uses a compatible 19-tooth Dana spline
- Your motor cross-reference matches one of the listed compatible numbers
- Your controller and wiring are compatible
- Your batteries, controller, solenoid, cables, and wiring are in good condition
- You understand that higher-speed performance may require controller reprogramming
If you are not sure which motor your GEM needs, contact us before ordering. Photos of your existing motor tag, motor spline, controller area, battery setup, and vehicle information can help us confirm the correct replacement.
Important Performance Notes
This motor can provide strong performance in compatible GEM applications, but final speed and acceleration depend heavily on the rest of the vehicle setup.
For higher performance levels, including 30+ MPH potential, controller reprogramming may be required. Battery condition, tire size, controller setup, vehicle weight, terrain, and overall mechanical condition all matter.
Shipping Note
Motors typically ship within 5–10 business days from the manufacturer.
Shipping times may vary based on manufacturer availability, production schedules, and order volume.
