Description
Upgrade Your EZGO TXT Electric with Premium Heated Lithium Power
The Bolt Energy 48V 105Ah Heated Thin Standard Lithium Battery Kit is a complete lithium conversion solution designed specifically for EZGO TXT Electric golf carts. Built with advanced LiFePO4 technology, this battery system delivers dependable power, faster charging, and significantly less maintenance than traditional lead-acid batteries.
Integrated heating technology helps maintain charging performance in colder environments, making this battery kit an excellent option for year-round golf cart use.
Whether you’re using your EZGO TXT around the neighborhood, campground, jobsite, or property, this system provides smooth, consistent power from the beginning of your ride to the very end.
Key Benefits
- Integrated heating technology for cold-weather charging
- Longer runtime than traditional lead-acid batteries
- Faster charging capabilities
- Lightweight design helps reduce overall cart weight
- Consistent power delivery throughout discharge cycles
- No watering or routine battery maintenance required
- Bluetooth battery monitoring capability
- Extended battery lifespan
Vehicle Compatibility
Designed to fit:
EZGO TXT Electric Golf Carts
The thin-profile battery design allows for efficient use of available battery tray space while still delivering substantial energy capacity.
Not sure if this kit fits your golf cart? Contact our team before ordering and we’ll help verify compatibility.
Compatibility and Installation:
- Our golf cart lithium batteries are compatible with many golf cart brands including:ย Advanced EVยฎ, Bad Boy Buggyยฎ, Bintelliยฎ, Club Carยฎ DS, Club Carยฎ Precedent, Colemanยฎ, E-Z-GOยฎ, Evolutionยฎ, EPICยฎ, GEM Carsยฎ, ICONยฎ, Kandiยฎ, MadJaxยฎ XSeries, Navitasยฎ Storm, Titanยฎ, Tomberlinยฎ, Trojan EVยฎ, Vividยฎ, Yamahaยฎ
- 10-Year Limited Warranty Details

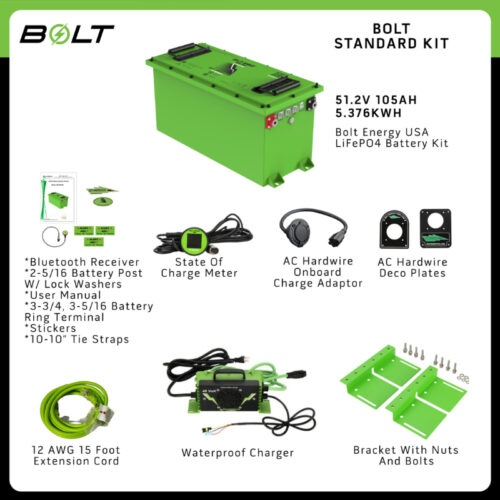

Standard Kit Includes:
- 51.2V 105Ah Thin Battery
- Bluetooth receiver
- Smart SOC (State of charge meter)
- Ownerโs manual
- Six 3/8 battery ring terminal connectors
- Ten 10″ tie straps
- Bolt Energy USA stickers
- Waterproof high-speed charger
- Mounting brackets, Nuts, and bolts
- AC Hardwire Port
- AC hardwire DECO cover plates
- 15ft 12 AWG Green lighted extension cord
Heated Battery Specifications:
- Heated batteries warm themselves as they start to charge, and once they hit around 34 degrees, they start charging normally
- The heating system only runs when the battery is under the charging temperature and will automatically shut off once the proper temperature is reached
- The battery can charge in unheated places such as garages, barns and even outdoors
- The heating system only activates while the charger is plugged in
- Heated batteries can warm themselves overnight and be ready to use the next day
- A heated battery temperature charge and discharge specifications still operate the same as standard batteries
Electrical Specifications:
- Nominal Voltage: 51.2V
- Working Voltage: 43.2 โ 58.4V
- Recommended Voltage: 48.0V โ 57.0V
- Nominal Capacity: 105Ah
- Energy: 5,376Wh
- Capacity at 25A: 252 min
- Efficiency: 0.99
- Self-Discharge: <3% per Month
Discharge Specifications:
- Maximum Continuous Discharge Current: 250A
- Peak Discharge Current: 520A ยฑ 15.6A (30S)
- BMS Discharge Current Cut-Off:
- 260 A ยฑ A7.8A (50S)
- 520A ยฑ 15.6A (30S)
- BMS Discharge Voltage Cut-Off: 40V
- Recommended Low Voltage Disconnect: 48.0V
- BMS Reconnect Voltage: 41.6V
- Discharge Temperature: -4 to 149ยฐF (-20 to 65ยฐC)
Charge Specifications:
- Recommended Charge Current: 5 โ 52A
- Maximum Input Current: 350A
- Charge Current Cut-Off: 375A
- BMS Charge Voltage Cut-Off: 58.5V
- Reconnect Voltage: <58.5V
- Charging Temp. Range: 34ยฐF to 140ยฐF (0-60ยฐC)
Mechanical Specifications:
- Dimensions (L x W x H): 20″ x 8.43″ x 10.65″
- Weight: 105lbs (47.63kg)
- Terminal Type: M8*1.5*25mm
- Cell Configuration: 1P16S
- Case Material: Powder Coated Steel
- Enclosure Protection: Designed with IP66 Standard
- Cell Type โ Chemistry: Prismatic- LiFePO4
Communication:
- Bluetooth: Bluetooth receiver
- CAN: CAN port for testing battery
Bolt Energy USA Lithium Battery Bundles are compatible with the following golf cart brands: Advanced EV, Bad Boy Buggy, Bintelli, Club Car DS, Club Car Precedent, Coleman, EZGO TXT, EZGO RXV, Elite, EPIC, Evolution, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, Yamaha. Bolt Energy USA is compatible with many other carts and electric EV vehicles – Call us for any Makes/Models not seen here, and we’ll build a customer bundle for you.ย
